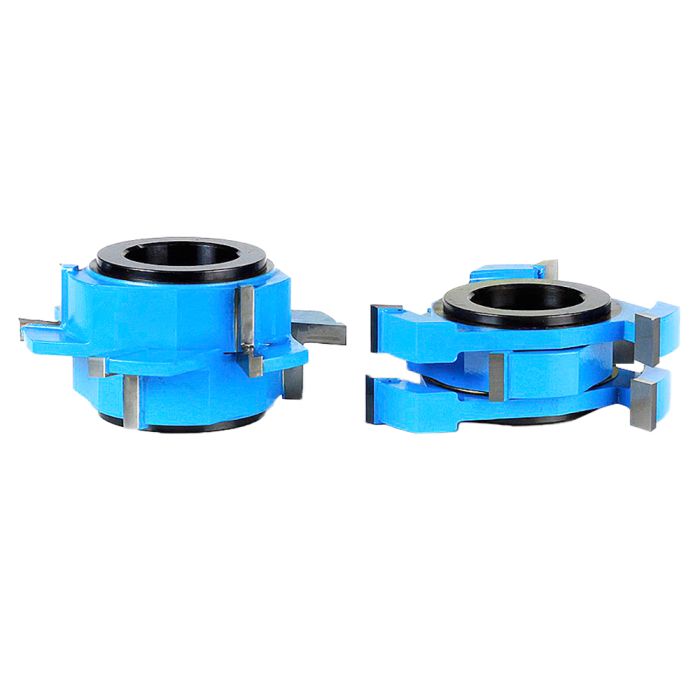

Amana Tool SC553 2-59/64" Carbide Tipped 3-Wing Instile & Rail Adjustable Cabinet Door Shaper Cutter Set
Ships direct from manufacturer
Rub collar for 1-1/4 inch arbor only.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Amana Tool Corp. |
|---|
| Condition | New |
|---|
| UPC | 73868572553 |
|---|
| Features |
- Designed to cut precise grooves to provide undersized plywood veneered panels with a snug rattle-free fit
- Adjust the panel groove width 3/16 inch to 9/32 inch for 1/4 inch plywood
- 5.5 mm for undersized 1/4 inch plywood and 5.9 mm for oversized 1/4 inch veneered plywood
|
|---|
| Optional Rub Collar | C-051 |
|---|
| Type | Shaper Cutter |
|---|
| Bore Diameter(d) | 1", 1-1/4" |
|---|
| Diameter(D) | 2 59/64" |
|---|
| Diameter(D1) | 2 5/32" |
|---|
| For Material | 5/8 - 1 1/4" |
|---|
| Material | Carbide Tip |
|---|
| # of Wings | 3 |
|---|
| Overall Length(L) | 3/8" |
|---|
| Profile Type | Straight |
|---|
| Package Size | 2 |
|---|
| Style | Instile & Rail Adjustable Cabinet Door |
|---|
| Cutting Height(B) | 1-1/16" - 1-21/64" |
|---|
| Cutting Width | 7/16" |
|---|
| T | 3/16" - 9/32" |
|---|
