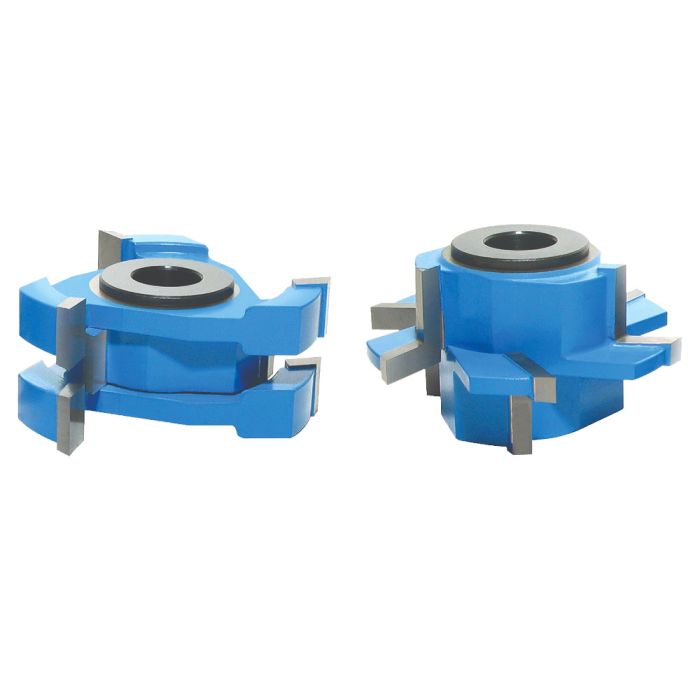

Amana Tool SC555 2-3/8" Instile and Rail Adjustable Cabinet Door 2 Piece Shaper Cutter Set
Ships direct from manufacturer
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Amana Tool Corp. |
|---|
| Condition | New |
|---|
| UPC | 73868572555 |
|---|
| Features |
- Designed to cut precise grooves to provide undersized plywood veneered panels with a snug rattle-free fit
- Adjust the panel groove width 3/16" to 9/32" for 1/4" plywood
- 5.5 mm for undersized 1/4" plywood and 5.9mm for oversized 1/4" veneered plywood
- Rub collar for 3/4" arbor only
|
|---|
| Material | Carbide Tip |
|---|
| Type |
Shaper Cutter Set |
| Diameter (D) |
2 3/8" |
| Bore Diameter (d) |
1/2" and 3/4" |
| Cutting Height (B) |
1 1/16" to 1 21/64" |
| Length of Carbide (C) |
7/16" |
| Inner Diameter (D1) |
1 5/8" |
| Material Size |
5/8" - 1 1/4" |
| Depth of Groove (L) |
3/8" |
| Optional Rub Collar |
C-005 |
| Profile Type |
Straight |
| Width of Groove (T) |
3/16" to 9/32" |
| Shaper Cutter Type |
Instile and Rail Adjustable Cabinet Door |
| Number of Wings |
3 |
