ET&F - A BECK Brand AKN-100-0150-HA, 1-1/2" Steel Pins 8M

SKU
AKN-100-0150-HA
$170.00
Ships direct from manufacturer?

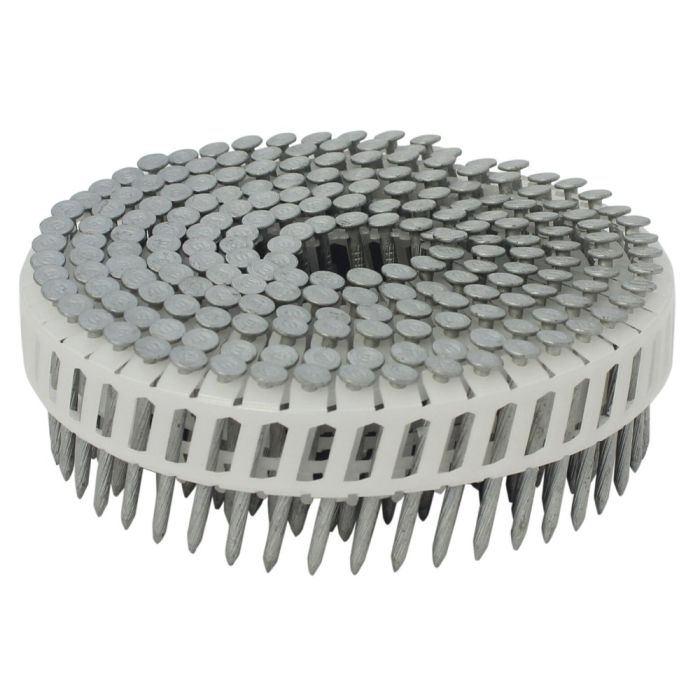

The STEEL FRAMING PINS AKN-100-XXXXHA series pins are designed specially for attaching plywood, oriented strand board (OSB) and fiber cement siding and soffit to cold formed steel from 97 mil (12 GA.) to 27 mil (22 GA.). These pins are finished with Aericote 1000 coating which provides ten times the corrosion protection of electroplated zinc. When driven, the fastener separates completely from the sheet plastic collation leaving a clean fastening, especially important when face nailing siding.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerET&F Fasteners - A BECK Brand
ConditionNew
Features
  • Refer to IAPMO UES ER-335 for design values for horizontal diaphragm and shear wall construction
  • See ICC Reports ESR-2290 and ESR-1844 for design values for use face nailing James Hardie fiber cement siding
  • See ICC Report ESR-2273 for design values for use fastening James Hardie fiber cement soffit
ApplicationDrywall, Steel Framing
Suitable for Use WithET&F Modell 710 15°, 2 1/2", Coil Nailer & SCRAILer, Rockfast Model 620
TypePins
Head TypeFlat Head
Collation TypePlastic Sheet Coil
Diameter0.1"
Length1-1/2 - 2-1/2"
Coil ShapeFlat
Collation Degrees15 Deg
FinishAericote 1000
MaterialHigh Carbon Steel
NailpointSharp Pin Point
Shankknurled
