4-speed gearbox with hammer function for optimal cutting speeds in metal for holes from 1/16" to 3-1/8"
Great versatility with the FEIN QuickIN system for multi-functional use related to drilling, core drilling, tapping, countersinking, and screw applications
QuickIn accessories allows for quick change flexibility between metal and wood applications in seconds
Extremely safe with kickback monitoring which stops the tool
More control with the extendable auxiliary handle
Selectable hammer function for drilling in stone and masonry up to 1/2"
The brushless, high-performance FEIN PowerDrive motor with up to 30% higher efficiency extends the service life
High torque up to a maximum of 1,150 in/lb
QuickIN solid metal drill chuck with carbide jaws and 1,062 in/lb clamping force
Electronic torque setting (15+1)
Intuitive control panel with dimmable LED for perfect illumination of the work area
Comes with a magnetic bit holder and belt clip
8-piece bit set with bit holder and 7 bits (PZ2, PZ3, T15, T20, T25, T30, T40, 60-1/4)
Drives 3/8 x 15-3/4 in [10 x 400 mm] screws without pre-drilling
Over screw driving function to prevent screw from driving too deep into the wood
Drives up to 1,400 1/4 x 1-1/2" screws in wood with one battery charge (CORE 18 V 4 Ah)User safe with restart and electronic overload protection
Compatible with Bosch Professional 18 V batteries since 2008 and AMPShare batteries
COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time
Perfectly equipped for any job with our L-BOXX system

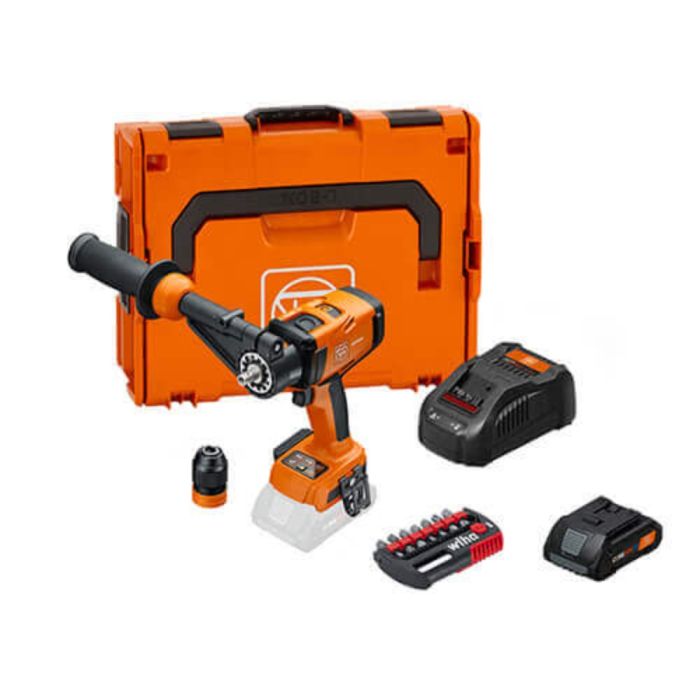

Includes
1 ASCM 18-4 QMP AS (Incl. Handle, Belt Clip, Magnetic Bit Holder)
1 Battery Pack CORE 18 V 4.0 Ah AS
1 Rapid Charger GAL 1880 CV AS
1 8-Piece Bit Set
1 Tool Case (L-BOXX 136)
Voltage
18 V
Type
Hammer Drill/Driver Set
Battery Compatibility
Li-ion / Core 18 V Li-ions
Corded or Cordless
Cordless
Battery Interface
18 V AMP Share
Motor
Brushless
Gearbox
4-Speed
Accessory Interface
QuickIN
No Load Speed
430 / 850 / 2 000 / 4 000
Impacts Per Minute
6 450 / 12 750 / 30 000 / 60 000
Maximum Torque (Hard/Soft)
1,151 (620 / 443) in/lbs
Torque Steps
15 + 1
Chuck Capacity
1/16" - 1/2"
Fastening
3/8" x 15-3/4"
Drill Ø Steel Twist Drill
1/2"
Holesaw Diameter Capacity in Wood
2-3/8"
Capacity in Stone Ø
1/2"
Tapping
1/2" [M14]
Weight Without Battery
3.09 lbs
Sound Pressure Level LpA
93.9 dB
Measurement Uncertainty of the Measured Value KpA
5 dB
Sound Power Level LWA
101.9 dB
Measurement Uncertainty of the Measured Value KWA
5 dB
Peak Sound Value LpCpeak
113.4 dB
Measurement Uncertainty of the Measured Value KpCpeak
