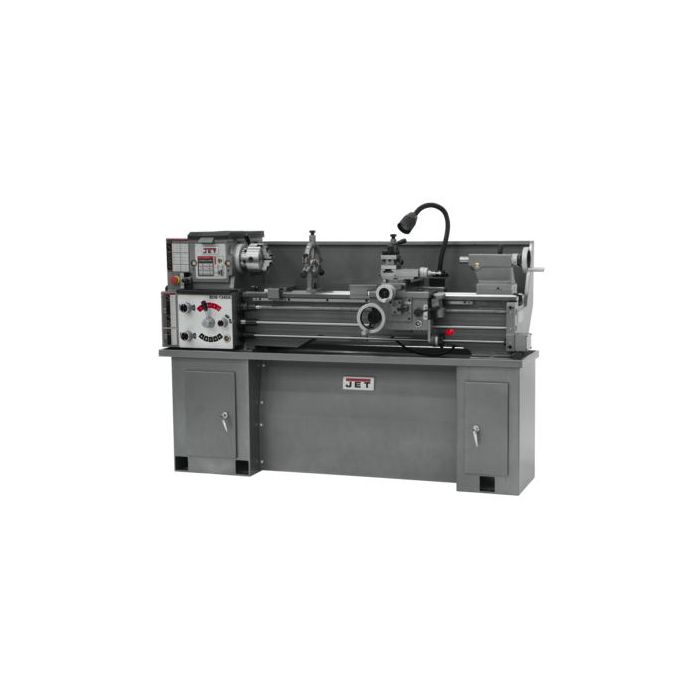

JET 321102AK BDB-1340A, Lathe with CBS-1340A Stand

SKU

JT9-321102AK

$12,539.00

Ships direct from manufacturer

Usually ships in 24-48 hours

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

JET belt drive bench lathes feature an enclosed gearbox with helical cut gears for noise reduction and smooth operation. The full length splash guard on all sizes prevents hot chips and fluid from contaminating the work area and the quick change gearbox allows for fast and easy gear changes for metric threading. Each JET lathe comes loaded with features you've come to expect, all backed by the industry leading JET two year warranty

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Jet
Condition	New
UPC	66275550333
Features	Image shown with optional bench, p/n 321443AK Enclosed gearbox design provides smooth, quiet operation Fast, easy speed changes Low voltage motor controls Helical cut headstock gears reudce noise Change gears allow metric threading Spindle is supported by precision tapered roller bearings V-way bed is induction hardened and ground Gap bed section provided for large diameter work Independent leadscrew and feed rod T-slotted compound slide with four-way tool post Carriage mounted spindle control lever Automatic feeding and threading are fully interlocked Feed selectors travel in grooved ways Tailstock may be offset for turning tapers and includes and inch/metric graduated quill Oil pan included Tolerance test certificate included 6" 3-jaw direct mount scroll chuck with top reversing jaws 8" 4-jaw independent chuck 12" faceplate Four-way tool post Steady and follow rest Metric change gear Centers and headstock center sleeves Threading dial Tool box with tools
PDFs	321102AK_InstructionManual
Horsepower	2 HP
Motor Phase	1 Ph
Stationary type	Bench
Warranty	2-Year

Drive	Belt
Size	13" x 40"
Accessories	Stand
Swing Over Bed	13"
Swing Over Cross Slide	7-25/32"
Swing Through Gap	18-3/4"
Length of Gap	8"
Distance Between Centers	40"
Spindle Bore	1-3/8"
Spindle Mount	D1-4
Taper in Spindle Nose	MT-5
Spindle Taper Adapter	MT-3
Spindle Bearing Type	Taper Roller Bearing
Number of Spindle Speeds	12
Range of Spindle Speeds	60 - 1240 RPM
Number of Longitudinal and Cross Feeds	38
Range of Longitudinal Feeds	0.0018" - 0.0374" IPR
Range of Cross Feeds	0.0006" - 0.013" IPR
Number of Inch Threads	40"
Range of Inch Threads	3-1/2" - 80" TPI
Number of Metric Threads	27mm
Range of Metric Threads	0.45mm - 10mm
Maximum Tool Size	5/8" x 5/8"
Compound Slide Travel	2-11/16"
Cross Slide Travel	6-5/16"
Carriage Travel	35"
Tailstock Spindle Travel	3-3/4"
Taper in Tailstock Spindle	MT-3
Steady Rest Capacity	1/4" - 2-5/8"
Follow Rest Capacity	1/4" - 2-3/4"
Length of Bed	54"
Width of Bed	7-3/8"
Height of Bed	12"
Length	71"
Width	32"
Height	25-1/2"
Motor Voltage	230 V
