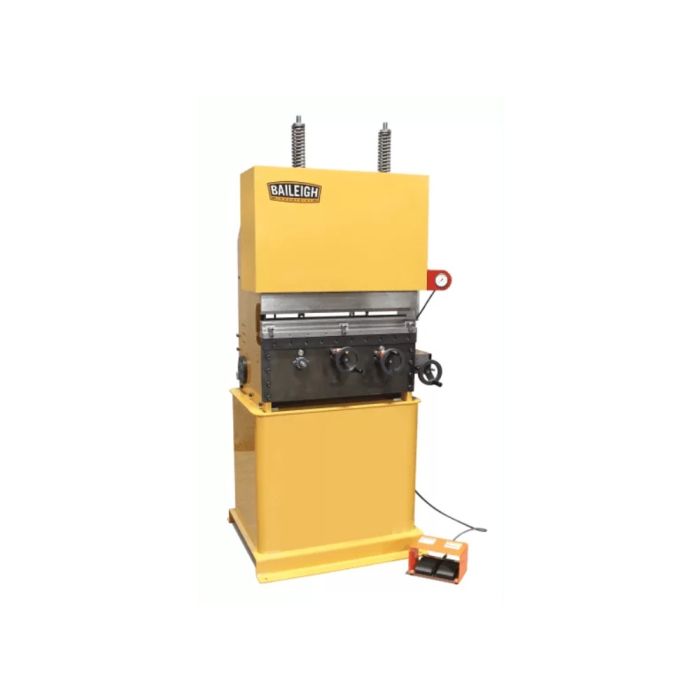

Baileigh Industrial BA9-BP3142NC BP-3142NC, 220V 42 Ton, 31" Hydraulic Press Brake Ships direct from manufacturer
Got a lot of small items to bend? Designed and made in the USA, this small hydraulic press brake is perfect for hot rod shops that need to bend bracket quickly, but don’t want a larger machine.
Recommended for: Hot rod shops and other fabricators that work with smaller parts, but need a fast, professional-quality machine.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Baileigh Industrial Condition New UPC 19907073994 Features 42 tons of pressure 31" wide 220V 1-phase power Foot pedal-controlled stroke 31" width is perfect for smaller projects. Bends a maximum capacity of .25" mild steel. 2 hp motor produces 42 tons of pressure. Runs on 220-volt single phase power, so it will work in any shop, even when power is limited. Foot pedal controls hydraulic system, leaving your hands free to guide the material. Easy to use. You can train someone to handle this press brake in 5 minutes. Sturdy 19.5"-long manual back gauge makes it simple to create repeat parts. Digital readout (DRO) for back gauge and down position helps you get precise results. Includes a hardened multi-Vee bottom die, unlike some competing machines which don’t come with tooling. Universal tooling holder gives you a wide variety of options to fit your applications. Horsepower 2 HP Warranty 1 Year
Type Hydraulic Press Brake Approach Speed 0.9" / sec. Back Gauge Capacity 19.5" Bending Speed 0.4" / sec Digital Readout Yes Distance Between Housings 28" Distance From Table To Ram 8.5" Distance Per Stroke 2" Input Power 220V / 1-phase Model Number BP-3142NC Rating (Tons) 42 Tons Shipping Dimensions (L x W x H) 60" x 48" x 94" Shipping Weight 2000 lbs Stroke 2" Table Length 31"
