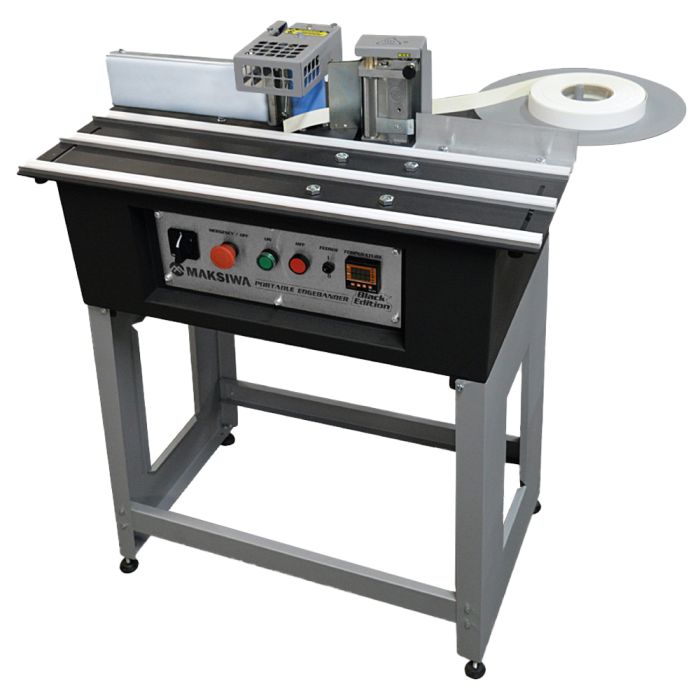

Maksiwa CBC.E 3" Portable Edge Bander

SKU
CBC.E
$2,999.00
Ships direct from manufacturer?

The Portable Edgebander CBC.E is designed for convenience, portability, and efficiency. It has retractable legs for easy transportation. Works with edge banding tape width up to 3” and thickness 0.3mm -2mm. The built-in manual cutter provides a precise cut of the tape. With a digital temperature control panel, you can easily control the glue temperature and the glue pot capacity is 1.5 pounds (700 grams). A spiral bar raises the glue from the glue pot and flows back down, similar to a fondue fountain. It uses low temperature pellet glue, Maksiwa recommends glue that work in the range of 130 degree up to 180 degree Celsius. There is also an adjustment for glue flow rate. Safety features include an emergency button, which will instantly shut down all machine controls.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerMaksiwa
ConditionNew
Features
  • Large Plate Support: Fits edge tape rolls up to 20”
  • Adjustable Guide: Supports the edgebanding tape while it is being applied to the workpiece
  • Tape Guide: Ensure the alignment between the tape and workpiece
  • Table Guide: Provides a smooth surface allowing the workpiece to slide across the table
  • Foldable Legs: Can be easily transported from the shop to the job site
  • Glue Assembly: Has a recycle system that allows excess glue to flow back into the glue pot
PDFs
Video

Motor Phase1 Ph
Stationary typePortable
Warranty2 years
Type Edge Bander
Motor Amp Draw Voltage 127 V or 220 V
Motor Amp Draw Amperage 10.2 A or 5.5 A
Motor Power 1300 W
Tape Thickness 0.3 mm - 2 mm
Feeder Speed 18 ft/min
Glue Granulated Hot-Melt
Maximum Tape Width 3"
Weight 114.6 lbs
Glue Temperature 130 Deg -180 Deg C
