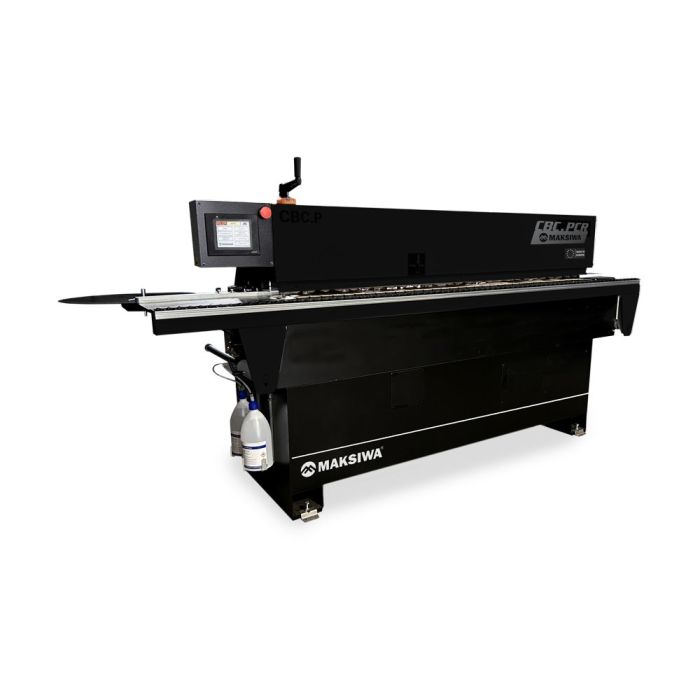

Maksiwa CBC.PCR Automatic Edgebander Platinum Corner Rounding

SKU
CBC.PCR
$34,900.00
Ships direct from manufacturer?
Notify me when the price drops
Add to Wish List Add to Compare
Shipping Policy Return Policy

The Maksiwa CBC.PCR Automatic Edgebander delivers industrial-grade performance with the highly requested corner rounding feature. It also includes pre-milling, trimming, glue scraping, and buffing for a premium finish. The XMELT glue pot system supports EVA and PUR adhesives. With a 8HP motor and user-friendly PCL touchscreen, it handles edge tapes of 0.4-3mm and panel thicknesses from 10-50mm.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerMaksiwa
ConditionNew
Features
  • Edge Tape: 0.4-3 mm
  • Panel Thickness: 8-50mm
  • Corner Rounding Unit
  • Glue Scraper Unit
  • Buffing Unit
  • End Trimming HF Motor
  • Pre-milling Unit 2 HF Motors with Diamond Cutters
  • XMELT Glue Pot System (compatible w/ EVA and PUR Adhesives + easy drainage System)
  • C.A.S.S - Cleaning Agent Spraying System
  • Glue Pot Capacity 1.5kg | 3.3lbs Teflon Coated
  • Automatic feeding Speed 18 ft/min
  • Conveyor Chain Feed System for optimum results.
  • HF motors controlled by independent electronic converters
  • Compact Design
  • Melamine/PVC/ABS/PP
Type Edgebander
Automatic Feeding Speed 18 ft/min
Panel Thickness Min/Max 21/64" - 1-31/32"
Maximum Pre-Milling Height 1"
Edgebanding Thickness 0.0157" - 0.118"
Glue Pot Capacity 3.3 lbs
Maximum Edgebanding Height 2"
Minimum Panel Width 3"
Minimum Panel Length 7-7/8"
Extendable Panel Support Rail Length 103"
Extension Table Maximum Width 54"
Size of Dust Collector Ports 6"
Minimum Dust Collection Requirements 1236 CFM
Air Pressure Requirement 14 SCFM @ 87PSI
Edgebanding Coil Support Diameter 59"
Recommend Glue Temperature Range 356°F - 410°F
Maximum Machine Dimensions (L x W x H) 119" x 40-16/16" x 48.7/16"
Weight 1411 lbs
Glue Type Granulated Hot-Melt EVA / PUR
Electrical Information 1 Phase 220V 30 Amps 60Hz
Electrical Requirement 1 Phase 220V 40 Amps 60 Hz
Conveyer Motor 60 Hz 1390 RPM .66 kw
Top/Bottom Trimmer HFM 200 Hz 12,000 RPM .27kw
End/Corner Rounding Trimmer Motor 200 Hz 12,000 RPM .27kw`
Front/Rear Pre-Milling HFM 150 Hz 9000 RPM .75/.25Kw
Top Buffing Motor 60 Hz 1680 RPM .11kw
Bottom Buffing Motor 60 Hz 1680 RPM .11kw
Sound Rating 80 dB
Eletrical specs 1 Phase 220V 60Hz 30A
Feeder Speed 18ft/min
Glue Temperature 180° to 210° C
Glue Pot Type Granulated Hot-Melt EVA / PUR
Workarea 119" x 40"
End Trim Pneumatic
