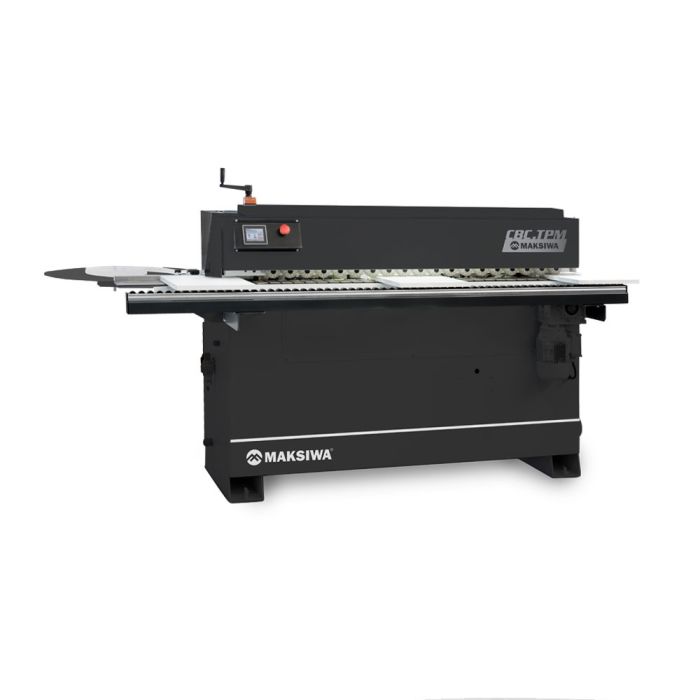

Maksiwa CBC.TPM Automatic Edgebander Pre-Milling Ships direct from manufacturer
The Maksiwa CBC.TPM Automatic Edgebander combines precision and efficiency with a compact design, making it ideal for workshops with limited space. It features pre-milling, a gluing unit, a multi-function group for end trimming and top & bottom trimming, glue scraping, buffing, and vertical rounding for versatile performance. Equipped with touchscreen panel, this machine ensures ease of operation and delivers a flawless finish.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Maksiwa Condition New Features Edge Tape: 0.4-2 mm Panel Thickness: 10-45mm Glue Scraper Unit Buffing Unit End Trimming HF Motor Pre-milling Unit 2 HF Motors Automatic feeding Speed 21 ft/min Compact Design Melamine/PVC/ABS/PP
Type
Edgebander
Automatic Feeding Speed
21 ft/min
Panel Thickness Min/Max
13/32" - 1 3/4"
Maximum Pre-Milling Height
1"
Edgebanding Thickness
0.0157" - 0.07"
Glue Pot Capacity
1lbs
Maximum Edgebanding Height
1"
Minimum Panel Width
1-3/4"
Minimum Panel Length
4 3/4"
Extendable Panel Support Rail Length
83 1/2"
Extension Table Maximum Width
10"
Size of Dust Collector Ports
6"
Minimum Dust Collection Requirements
1236 CFM
Air Pressure Requirement
14 SCFM @ 87PSI
Edgebanding Coil Support Diameter
59"
Recommend Glue Temperature Range
356°F - 410°F
Maximum Machine Dimensions (L x W x H)
93-1/2” x 40-13/16” x 53”
Weight
1191 LBS
Shipping Dimensions (L x W x H)
91” x 30” x 57”
Glue Type
Granulated Hot-Melt EVA
Electrical Information
1 Phase 220V 30 Amps 60Hz
Sound Rating
80 dB
Electrical Requirement
1 Phase 220V 30 Amps 60 Hz
Conveyer Motor
60 Hz 1390 RPM .66 kw
Top/Bottom Trimmer HFM
200 Hz 12,000 RPM .27kw`
End Trimmer Motor
200 Hz 12,000 RPM .27kw
Front/Rear Pre-Milling HFM
150 Hz 9000 RPM .75/.25Kw
Top Buffing Motor
60 Hz 1680 RPM .11kw
Bottom Buffing Motor
60 Hz 1680 RPM .11kw
Eletrical Specs
1 Phase 220V 60Hz 30A
Feeder Speed
21ft/min
Glue Pot Type
Granulated Hot-Melt EVA
Workarea
93 1/2" x 41"
End Trim
Pneumatic
