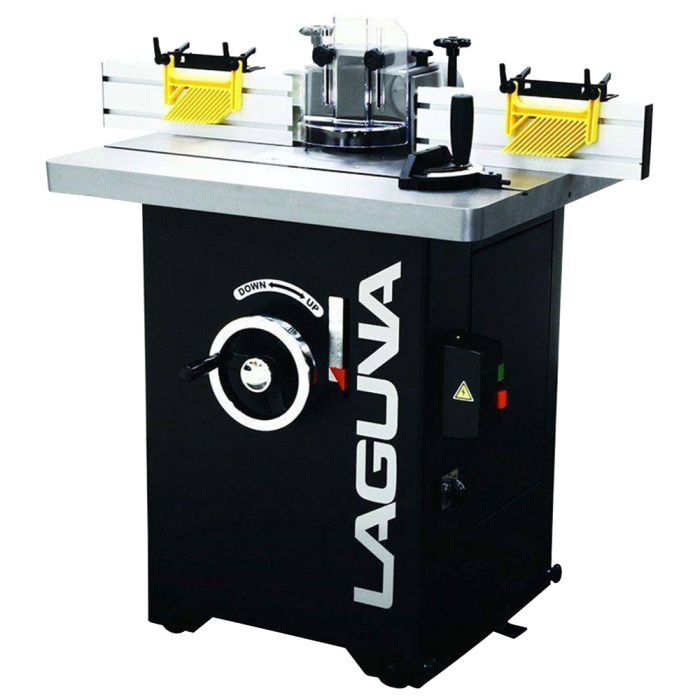

Laguna MSHAP4SPD-3-0130 4 Speed Compact Shaper

SKU
MSHAP4SPD-3-0130
$3,649.00
Ships direct from manufacturer?

The Compact Shaper from Laguna is already regarded as best in class. Impressive precision fence and wide-range RPM make it a versatile investment for any pro. The fit and finish on this world class machine is incredible. You will be hard pressed to find a better value than the Compact Shaper: 4 speeds, generous sized table, wheels built right in. Easy spindle lock makes tool changes a snap. One of the most impressive features is the speed change. A simple pull of a handle compresses the distance from the spindle to the pulley, changing speeds along the way. Another outstanding detail is the flat poly-groove belt which transfers more power with less vibration; something you won’t find in this price range anywhere else.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerLaguna
ConditionNew
Video

Horsepower3 HP
Motor Phase1 Ph
Voltage220 V
Speed (RPM)10000 RPM
Table Opening Diameter6 1/4"
Table Insert Opening Diameter2 1/2", 4 5/16"
Fence Size4 13/16" x 16"
Spindle Travel4"
Spindle Size3/4" & 1 1/4"
Table Height From Floor34"
Dust Port Diameter4"
Capacity Under Nut4" (1- 1/4" Spindle)
Forward/ReverseYes
Table T-SlotYes
Drive BeltFlat Poly-Groove
Micro Adjustment On FenceYes
Weight450 lbs
Table Size32″ x 26-1/2″
Spindle Travel4"
TypeCompact Shaper
Spindle Size3/4″ - 1-1/4″
Router Collets1/4″ - 1/2″
Frequency60 Hz
Spindle Speeds4000, 6000, 8000, 10000 RPM
Wheel SystemBuilt In
