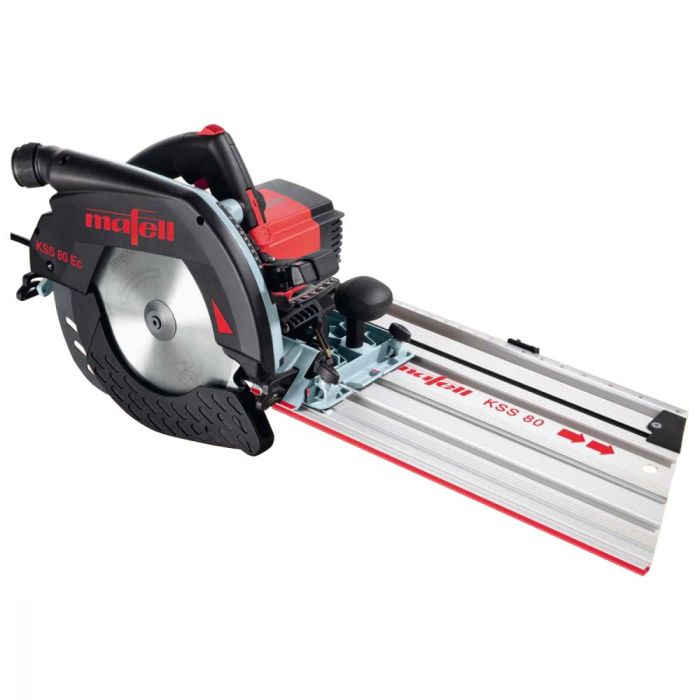

Mafell Tools 918523, KSS 80 Ec/370 Cross-Cutting System

SKU
918523
$1,898.00
Ships direct from manufacturer?

Combining the power and performance of the K85Ec with the versatility of the KSS 50cc, the Mafell KSS 80Ec/370 delivers an outstanding all-in-one cutting solution. Functioning as three saws in one, it allows carpenters to produce accurate, clean cuts directly on-site—eliminating the need to return to stationary machines and saving both time and effort.

The saw is paired with a durable guide track system featuring a friction pad for secure positioning and an adjustable “smart” stop for precise square cuts or miters up to 60°. With a cutting depth of up to 3-3/16" and powered by a high-performance CUprex motor, it handles both cross-cutting and ripping tasks with ease.

Designed for simplicity and precision, just align the guide track with the workpiece edge and push the saw forward—no need to manually follow a cutting line. The integrated rubber edge on the guide also helps prevent splintering, ensuring clean, professional results even during repeated angled cuts.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerMafell Tools
ConditionNew
UPC04032689189420
Features
  • Deep Track Cutting: Achieves up to 3-3/16" cutting depth on a 14-9/16" track—ideal for tenon shoulder cuts
  • High Power Motor: Equipped with a robust 17-amp motor for demanding applications
  • Bevel Capability: Tilts up to 60° for versatile angled cutting
Includes
  • Guide Track 370 (1.2')
  • 12T Ripping Carbide Blade
  • Parallel Guide Fence
  • Hose Connector
  • Allen Key
  • 13.1 ft Cord
  • L-MAX Carrying Case
Electric BrakeNo
Variable speedNo
TypeCross-Cutting System
Cutting Depth at 0 Deg On Track0" to 3-3/16"
Cutting Depth at 45 Deg On Track0" to 2-3/16"
Cutting Depth at 60 Deg On Track0" to 1-1/2"
Cutting Depth at 0 Deg Off Track0" to 3-7/16"
Tilt Range0" to 60 Deg
Saw Blade Diameter9-5/16"
Nominal Speed - No Load2,250 to 4,400 RPM
Motor120 V / 60 Hz
Current17 A
Weight With Track19.8 lbs
