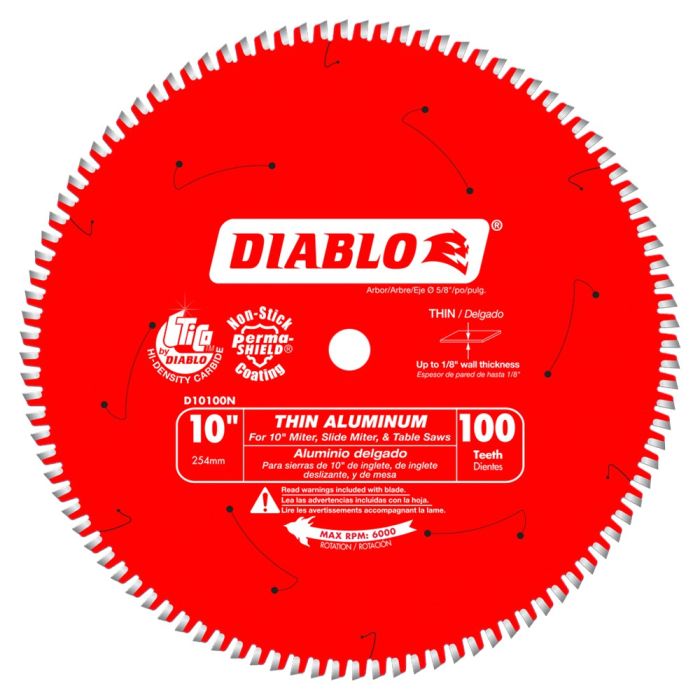

Diablo Tools D10100N 10" Thin Aluminum Cutting Saw Blade

SKU
D10100N
$74.97
Ships direct from manufacturer ?

Diablo's next generation Aluminum saw blades are optimized for cutting thin (up to 1/8"), medium (3/32"-1/4") and thick (3/16"-7/16") aluminum metals. Featuring the new, specially formulated Diablo TiCo Super-Density Micro-Grain Carbide, these radical blades withstand impact, reduce wear, provide clog free cuts and last longer than standard carbide in metal cutting applications. The specially formulated metal cutting carbide teeth feature a Triple Chip Grind (TCG) Tooth Design for clean, burr-free finishes, virtually eliminating any type of rework. Tri-Metal Shock Resistant Brazing allows these Aluminum blades to slice through metal materials while withstanding extreme impact for maximum durability.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerDiablo Tools
ConditionNew
Features
  • Triple Chip Grind (TCG) tooth geometry for maximum life, speed, and durability, giving clean, burr-free cuts
  • Laser-Cut stabilizer vents for trapping noise and reducing vibration for accuracy and durability
  • Perma-Shield non-stick coating for protection against heat, gumming and corrosion
ApplicationCutting Aluminum, Copper, Plastics, Brass, and Fiberglass
Arbor Size5/8"
Blade Diameter10"
Blade Thickness (Kerf)0.091"
Tooth GrindTriple Chip Grind (TCG)
Number of Teeth100
Speed (RPM)6,000 RPM
Type Saw Blade
Hook Angle -5 Degree
Plate Size .071"
Suitable for Use with Miter Saw, Slide Miter Saw, Stationary Miter Saw, Portable Table Saw
