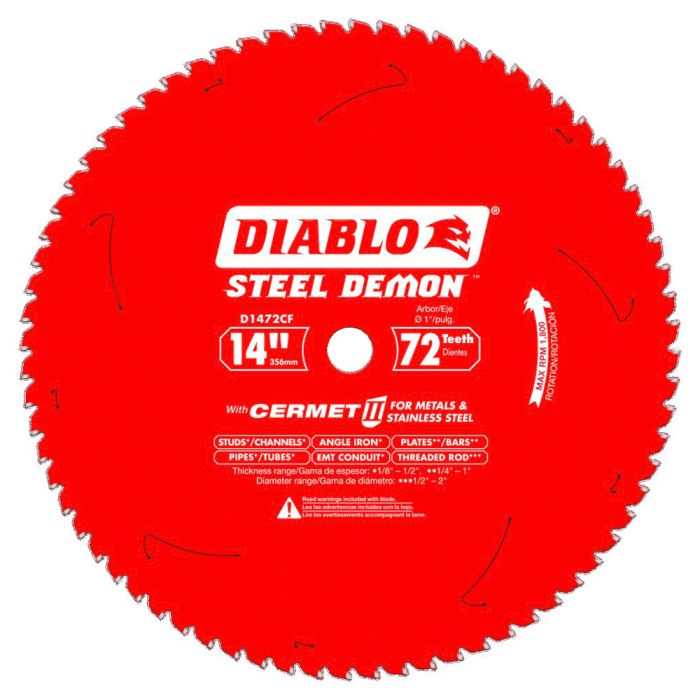

Freud Diablo D1472CF 14" 72T TCG Steel Demon Circular Saw Blade, for Ferrous Metal

SKU

D1472CF

$99.97

In Stock

Steel Demon 1" AH

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

Diablo’s new Steel Demon Cermet saw blade series is redefining metal cutting, and the jobsite, by introducing safer, exclusive innovation that allows users to cut both mild and stainless steels for 40X longer life versus standard carbide-tipped metal cutting saw blades. The specially formulated Cermet (Ceramic and Metallic) teeth provide high heat tolerances and increased hardness for superior wear and ultimate cutting life. Featuring a special Triple Chip Grind and Perma-Shield coating, these blades slice through the toughest of metals to produce precise cuts with less sparks and burr-free finishes that require no rework. The thin-kerf body and advanced laser cut anti-vibration stabilizer vents reduce vibration and noise to allow the blades to quickly shear through metal with ease and accuracy. The ability to cut through both mild and stainless steel eliminates the need for individually dedicated saw blades, offering a one-blade solution for ultimate metal cutting performance and unmatched value story, forever changing the metal cutting industry.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Diablo Tools
Condition	New
UPC	00892503244
Features	Cermet (Ceramic and Metallic) teeth provide a high heat tolerance and increased hardness for superior wear and ultimate cutting life; lasting up to 40X longer than standard carbide metal cutting saw blades Triple Chip Tooth design provides less sparks, burr-free finishes that require no-rework, and longer cutting life Advanced Laser Cut Stabilizer Vents trap noise and vibration for maximum stability, keeping the blade cool for straight, accurate cuts in metal cutting applications Tri-Metal Shock Resistant Brazing, a three metal brazing system, allows Cermet teeth to withstand extreme impact for maximum durability Laser Cut Thin Kerf Design provides less resistance and heat build-up for ease of cut, accuracy and long cutting life in metal cutting applications Perma-Shield non-stick coating resists heat build-up by protecting the blade against gumming and corrosion Laser Cut Arbor reduces vibration and premature wear for accurate blade rotation when in use on the saw Cuts 1/8 inch-1/2 inch wall thickness in steel studs, angle iron, flat bar, channel, and EMT conduit Cuts 1/4 inch-1 inch wall thickness in plate and bar stock Cuts 1/2 inch-2 inch diameter threaded rod Use with a dedicated low RPM metal cutting saw Clamp down your materials Use right tooth count to thickness of material Use correct cutting speed and let the tool do the work (do not cut too slow)
PDFs	D0770F Data Sheet
Application	For Ferrous Metal Cutting, Steel Studs, Angle Iron, Black Iron Pipe, Unistrut, Tubing, Emt Conduit, Flat Bar, Channel
Arbor Size	1"
Blade Diameter	14"
Blade Finish	Perma-Shield Non-Stick Coated
Blade Material	Carbide Tipped
Rake Angle	0 Deg
Tooth Grind	Triple Chip Grind (TCG)
Blade Type	Cermet Metal and Stainless Steel Cutting
Number of Teeth	72
Speed (RPM)	1,800 RPM
Suitable for Use With	14 inch Low RPM Metal Cutting Saws
Teeth Per Inch	72
Warranty	Limited Lifetime

Tip Material	Carbide
Diameter(D)	14"
Arbore Size	1"
Blade thickness (Kerf)	0.083"
Plate	0.071"
Maximum Speed RPM	1,800 RPM
