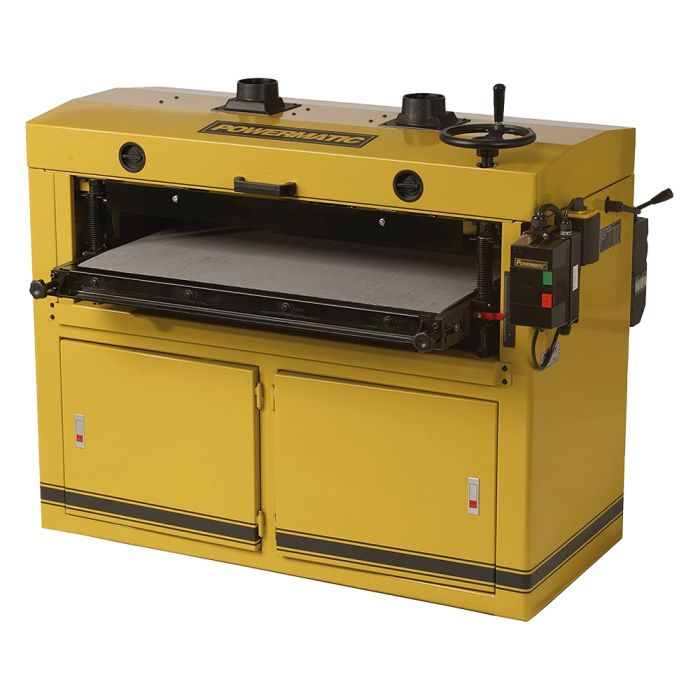

Powermatic 1791320 DDS-237 230V 37" Dual Drum Sander 7.5HP/1Ph

SKU
1791320
$8,599.99
Ships direct from manufacturer?
The production class Powermatic DDS-237 Dual Drum Sander that is loaded with features. A 7.5HP motor drives the dual steel drums, which have a hard durometer rubber coating to ensure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides vibration free sanding, with plenty of storage space underneath.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Powermatic
Condition New
Features
  • Dual drum head for superior finish
  • Two-speed gearbox for wide range of sanding projects
  • Forward/reverse conveyor belt grips stock evenly
  • Independently adjustable rear drum for fine tuning
  • Hard durometer rubber coating on steel drums provides flat, smooth finish
  • Full size cast iron table for solid support
  • Dual dust ports with directional baffles for more efficient dust removal
PDFs
Horsepower 7.5 HP
Motor Phase 1 Ph
Stationary type Drum
Warranty

5 Year

Motor Voltage230 V
Prewired Voltage230 V
Recommended Circuit Size50 Amps
Dust Port Outside DiameterTwo at 4"
Dust Collection Minimum CFM Required (CFM)1,200 CFM
Minimum Board Thickness1/32"
Minimum Board Length9"
Maximum Board Width37"
Maximum Board Thickness5 1/4"
Conveyor Speed (FPM)8 and 12 FPM
Conveyor Motor1/4 HP
Drum Diameter6"
Drum Speed (RPM)1,700 RPM
Number of Sanding Drums2
Drum Length37
