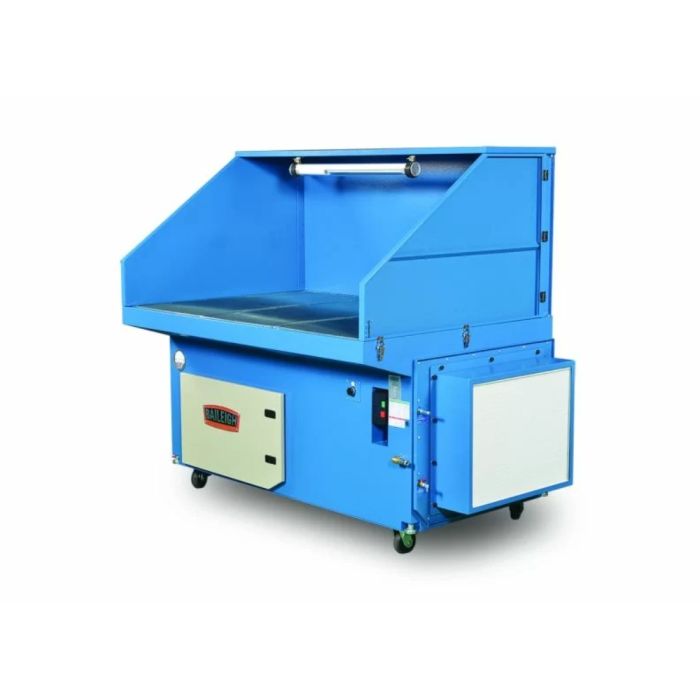

Downdraft Tables are becoming more popular with all of the air quality regulations that are now in place. The Heavy Duty Downdraft Table DDTM-8052-HD is the perfect table for large manufacturing facility has a need for a clean production. This easy to use down draft table takes all the little partials that float around the shop and pull them straight down into a contained unit and also help to clean the air. The DDTM-8052-HD has a list of features that make it one of the best tables on the market.
-Table Load Capacity –
Maximum 1764lbs (800kgs) Evenly distributed over 80% - 100% of table surface.
Concentrated Contact Surface Contact Weight
10% 221lbs (100gs)
20% 441lbs (200kgs)
30% 661lbs (300kgs)
40% 882lbs (400kgs)
50% 1102lbs (500kgs)
60% 1323lbs (600kgs)
70% 1543lbs (700kgs)
80% 1764lbs (800kgs)
For More information on the DDTM-8052-HD contact a Baileigh representative today at 920-654-5815
WARNING: Proposition 65 Warning for California Residents View Details
100% Tool free cleaning and filter maintenance/changes
Fully Assembled – Simply uncrate, wire, and begin use
CSA listed
Safety – Under OSHA decibel limit (hearing protection not required)
Standard equipment included: HEPA filter, fire resistant cartridge filter, spark arresting metallic pre-filter, magnehelic gauge, hinged side walls w/ back wall, work light, auxiliary 110V and air tool outlets, 12” overhang, casters and leveling feet
Horsepower
5 HP
Motor Phase
3 Ph
Warranty
1 Year
Type
Downdraft Table
Filter Size (W x L x D)
Aluminum x 2 - 11.3" x 23.8" x 0.86", Cartridge x 6 - Ø11.25" x 13"L, HEPA - 18" x 20" x 5.9"
