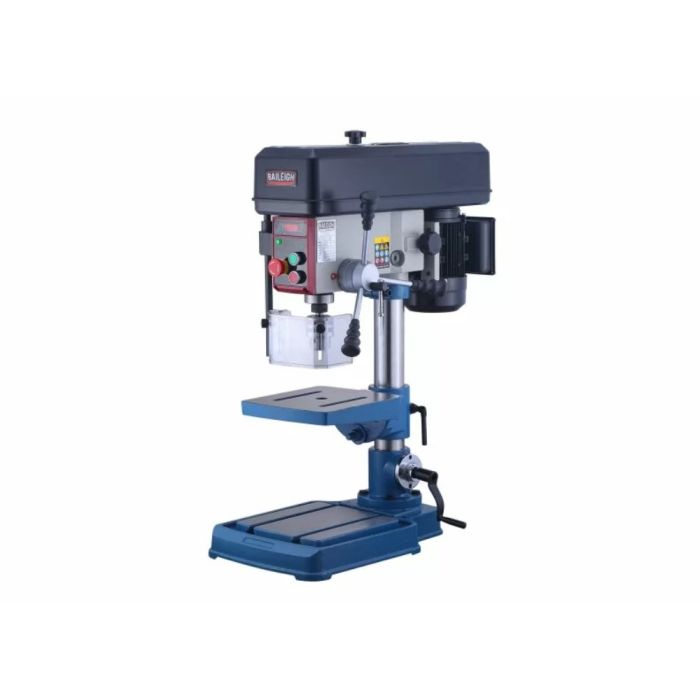

Baileigh Industrial BA9-1228212 DP-4016B, 16", 5 Speed Bench Top Drill Press Ships direct from manufacturer
Looking for a small, compact, bench top drill press that has the power to do any task you ask of it at an economical price? The DP-4016B 16" swing is just what you are looking for. This drill press runs smoothly even at it's 1" full capacity—and will do so for years at your shop.
Questions? Please give us a call at 1-920-654-5815.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Baileigh Industrial Condition New UPC 19907766520 Features 16" Swing 5 Spindle Speeds 11" x 10" Table 110V 1/2 hp motor requires 110-volt power , and will work at virtually any shop or site. Belt-driven head drills a maximum capacity of 5/8" mild-steel Spindle speeds in the range from 250 to 2900 rpm to suit your application. 2-3/4" wide steel column eliminates flexing even when drilling at full capacity Rigid cast iron base and table adds strength to the drill's structure The table even tilts left or right to 45 degrees Includes safety shield around the drill head to protect you Baileigh backs this bench-top drill press machine with a 1-year parts warranty & lifetime technical support by phone from our experienced team Warranty 1 Year
Type Drill Press Base Size 10.63" x 10.03" Chuck Size 0.03" - 0.625" Column Diameter 2-3/4" Distance Base to Spindle (Min.) 22.83" Drilling Capacity Mild Steel 3/4" Headstock Movement Yes (360 Deg) Input Power 110 V Model Number DP-4016B Number of Spindle Speeds 5 Overall Dimensions (L x W x H) 29.13" x 17.52" x 41.33" Range of Spindle Speeds (RPM) 250-2900 RPM Spindle Distance to Table (Max.) 13.18" Spindle Taper MT2 Spindle Travel 3.93" Swing 16" Table Material Cast Iron Table Size 11.14 x 9.76 Table Tilt L or R 45 Deg Table T-Slot 2 @ .531" Weight 269 lbs Working Load Limit 132 lbs
