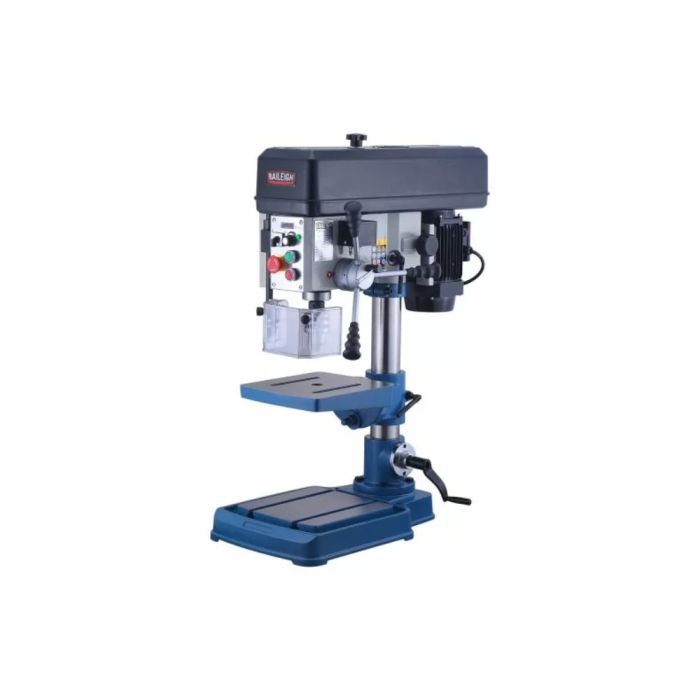

Baileigh Industrial BA9-1228213 DP-4016B-VS, 110V 16" Variable Speed Bench Top Drill Press Ships direct from manufacturer
Looking for a small, compact, bench top drill press that has the power to do any task you ask of it including tapping? The DP-4016B-VS is a 16" swing variable speed drill press that might just be what you are looking for. Unlike pulley-driven drills, this 16" drill press lets you run tooling at the proper speed to fit your application and extend tooling life.
Questions? Please give us a call at 1-920-654-5815.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Baileigh Industrial Condition New UPC 19907766872 Features 16" Swing Variable Speed Includes tapping function 11" x 10" Table 3/4 hp motor requires 110-volt power and will work at virtually any shop or site. Inverter-driven head drills a maximum capacity of 3/4” steel. You can fine-tune the speed in the range from 0 to 2100 rpm to suit your application. Auto-reversing tap has a tapping capacity of 1/2” steel. 2-3/4" wide steel column eliminates flexing even when drilling at full capacity. Rigid cast iron base and table add strength to the drill’s structure. The table even tilts left or right to 45 degrees. Includes a safety shield around the drill head to protect you. Baileigh backs this bench-top drill press machine with a 1-year parts warranty and lifetime technical support by phone from our experienced team. Horsepower 0.75 HP Warranty 1 Year
Type Drill Press Base Size 10.63" x 10.03" Chuck Size 0.03" - 0.625" Column Diameter 2-3/4" Distance Base to Spindle (Min.) 22.83" Distance From Spindle To Base 22.83" Drilling Capacity Mild Steel 3/4" Headstock Movement Yes (360 Deg) Input Power 110 V Model Number DP-4016B-VS Number of Spindle Speeds Variable Overall Dimensions (L x W x H) 29.13" x 17.52" x 41.33" Range of Spindle Speeds (RPM) 0-2100 RPM Spindle Distance to Table (Max.) 13.18" Spindle Taper MT2 Spindle Travel 3.93" Swing 16" Table Material Cast Iron Table Size 11.14" x 9.76" Table Tilt L or R 45 Deg Table T-Slot 2 @ .531" Tapping Capacity Mild Steel 1/2" Weight 275 lbs Working Load Limit 132 lbs
