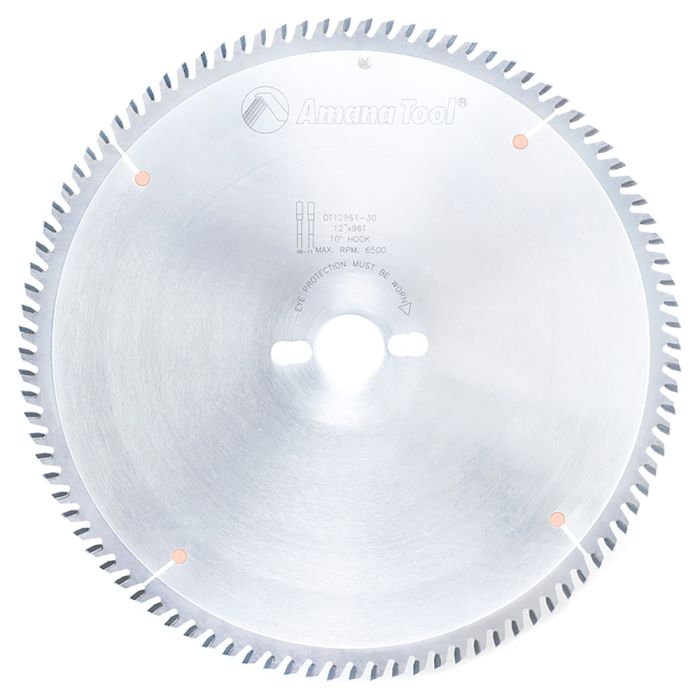

The blades incorporate an exceptional array of features: high tooth count, expansion slots and turbulence-dampening copper plugs. The Ditec carbide tips add exceptional sharpness and long tool life to these features. TC grind is for MDF, OSB, HDF, single or double-sided melamine and plastic laminated panels.
WARNING: Proposition 65 Warning for California Residents View Details
For maintenance grinding, use fine grit (D400 to D600) diamond wheels
To match the factory grind, use a slower than normal feed rate
Damaged teeth can be replaced by any grade of carbide tooth
Replacing of a large number of teeth will, of course, shorten the life of the saw blade
Since the carbide in the Ditec is harder than other carbides, it is critical that you protect them from “thermal shock” if an adjacent tooth is replaced
Heat absorbed during the brazing process will seriously degrade the Ditec carbide
Fits Striebig vertical panel saw
Application
Plastic Laminate, Single and Double Sided
Tooth Grind
Triple Chip Grind (TCG)
Number of Teeth
96
Pinholes
2/7/42, 2/9/46 & 2/10/60
Type
Saw Blade
Diameter (D)
12"
Bore Diameter (d)
1 3/16"
Hook Angle (a°)
10 Deg
Blade Thickness (Kerf) (B)
0.126"
Plate (C)
0.087"
Material
Carbide Tip
Maximum Speed (RPM)
6,500 RPM
Suitable for Use with
Sliding Table Saws, Such as Striebig, Altendorf, SCMI, Delta models and Regular Table Saws
