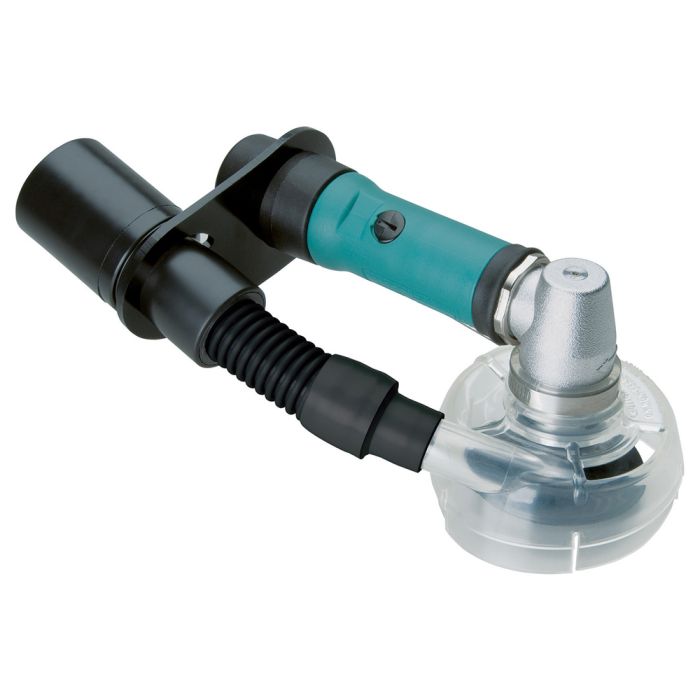

Unique vacuum shroud diverts dust and debris to vacuum source. Dynabrade's vacuum disc sander powers 3" (76 mm) diameter abrasive discs, for efficient material removal on non-ferrous surfaces. As tool is sanding, flexible vacuum shroud captures dust, debris and contaminants (including Hexavalent Chromium) to vacuum source - ensuring cleaner, safer workplace. This is an essential tool for aerospace, automotive, marine and transportation industries. 51346 backing pad, for 3" (76 mm) diameter locking-type abrasive discs. 1-1/4" (32 mm) diameter vacuum port ready for connection to external or central vacuum system. Standard shroud height of 1-1/2" (38 mm) accommodates 3" (76 mm) diameter bristle-type discs (sold separately). Standard shroud may also be trimmed for customized applications. Vacuum shroud constructed of high-quality clear urethane. Unique view -port allows operator to see edge of sanding disc, and offers optimum view of work surface. Flexible, non-marring vacuum shroud allows capture of dust, debris and contaminants (including Hexavalent Chromium) for cleaner, safer work environment. Vacuum shroud angle of 6 degrees ensures ideal surface contact for maximum debris extraction. Sound level is the pressure measurement according to the method outlined in ISO regulation ISO-15744.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Dynabrade |
|---|---|
| Condition | New |
| UPC | 00616026505612 |
| Includes |
|
| PDFs | |
| Application | For Smooth, Controlled Sanding, Carbon Fiber, Fiberglass, Painted Aluminum and More |
| AirTool Type | Pneumatic |
| Diameter | 3" |
| Horsepower | 0.4 HP |
| Speed (RPM) | 15,000 RPM |
| Type | Disc Sander |
|---|---|
| Maximum Air Flow Rate (SCFM) | 21 SCFM |
| Air Pressure | 90 PSIG |
| Shroud Type | Standard |
| Spindle Thread Size | 1/4" - 20 |
| Spindle Thread Type | Male |
| Sound Level | 86 dB(A) |
| Air Inlet Thread Size | 1/4" |
| Air Inlet Thread Type | NPT |
| Suitable for Use with | 3" (76 mm) Diameter Locking-Type Abrasive Discs |
| Exhaust Type | Rear |
| Hose Inner Diameter | 1/4" |
| Vacuum Type | Central Vacuum |
| Tool Style | Right Angle |
| Width | 2" |
| Length | 10" |
| Height | 4.38" |
| CE Certified | Yes |
| EAC Certified | Yes |
| Weight | 1.7 lbs |
