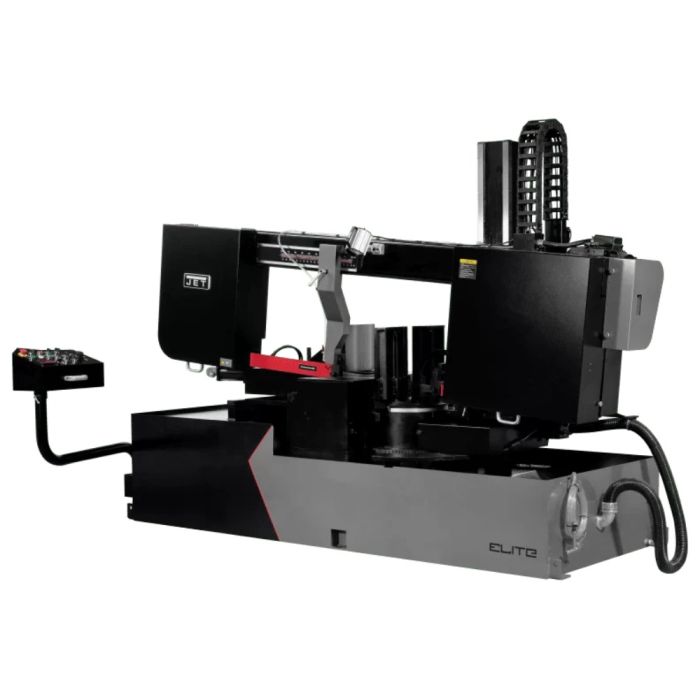

Jet JT9-891175 ECB-1833DMEVS-460, Elite 18 x 31" 460V EVS Bandsaw
Ships direct from manufacturer
With features unmatched, the JET Dual Mitering , Semi-Automatic, EVS Bandsaw is the perfect solution for cutting structural steel with ease.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Jet |
|---|
| Condition | New |
|---|
| UPC | 00731325868531 |
|---|
| Features | - Electronic variable speed from 50-297 SFPM
- Heavy duty construction reduces vibration and deflection
- Hydraulic assist descent control
- Auto table swivel
- Blade tension gauge helps to ensure the blade is in the correct cutting position
- Semi-auto on saw bow lifting and hydraulic vise
- Swing away control box allows Operator to use in any position
|
|---|
| Horsepower | 7.5 HP |
|---|
| Type | EVS Bandsaw |
|---|
| Bed Height | 33-15/32" |
|---|
| Blade Size | 1.61" x 0.051" x 240" |
|---|
| Blade Speed (SFPM) | 50 - 300 SFPM |
|---|
| Blade Wheel Diameter | 22-53/64" |
|---|
| Coolant Pump Motor | 1/8HP, 460V, 3PH |
|---|
| Electrics | 7-1/2HP, 460V, 3Ph |
|---|
| Mitering Angle Motor | 1/5HP, 460V, 3Ph |
|---|
| Model Number | ECB-1833DMEVS-460 |
|---|
| Weight | 5060 lbs |
|---|
| Oil Pump Motor | 1HP, 460V, 3Ph |
|---|
| Overall Dimensions (L x W x H) | 110" x 75" x 83" |
|---|
| Prewired Voltage | 460 V |
|---|
| Rectangle at 45 Degrees | 18" x 20-13/16" |
|---|
| Rectangle at 60 Degrees | 18" x 14-29/32" |
|---|
| Rectangle at 90 Degrees | 18" x 31-1/2" |
|---|
| Round at 45 Degrees | 18" |
|---|
| Round at 60 Degrees | 18" |
|---|
| Round at 90 Degrees | 15" |
|---|
| Square at 45 Degrees | 18" x 18" |
|---|
| Square at 60 Degrees | 15" x 15" |
|---|
| Square at 90 Degrees | 18" x 18" |
|---|
| Throat Depth | 18" |
|---|
| Warranty | 3 Year Elite |
|---|
| Weight | 5060 lbs |
|---|
