Klein Tools ET450, Advanced Electrical Circuit Breaker Finder & Wire Tracer Kit

SKU

ET450

$299.99

Ships direct from manufacturer

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

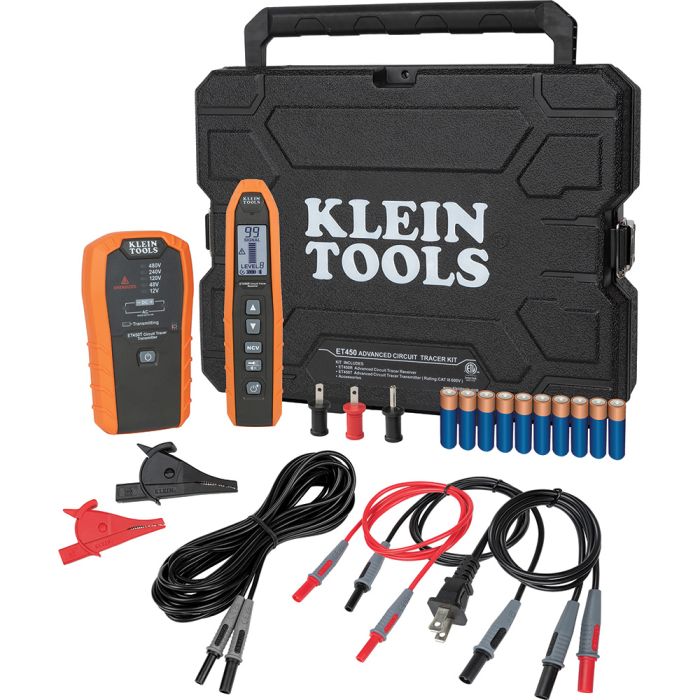

The Klein Tools ET450 Advanced Circuit Tracer Kit is a professional tracer for energized and non-energized breakers, fuses, and wires. When the Transmitter is connected to a circuit, the Receiver's sensitivity can easily be adjusted to detect the transmitted signal on breakers, fuses, and wire through drywall, cement block, and underground. Kit comes with transmitter, receiver, blade and ground prongs, alligator clips, 3-Foot and 20-Foot lead adapters, AC plug leads, instructions, all required batteries, and a hard carrying case with handle for convenient transportation and storage.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Klein Tools
Condition	New
UPC	92644693380
Features	The Advanced Circuit Tracer Kit provides reliable tracing of energized or non-energized breakers, fuses, and wires Easily adjust receiver sensitivity level to detect the transmitted signal through drywall, cement block, and underground Versatile applications include tracing wires, conduit or pipes, or a single wire in a bundle Audible beep and visual indicators on receiver denotes signal strength Receiver features a flashlight for illumination in low-light areas and NCV function to test if wires are energized Transmitter has AC/DC external voltage indicators of 12V, 48V, 120V, 240V, and 480V Kit comes with transmitter, receiver, blade and ground prongs, alligator clips, 3-Foot and 20-Foot lead adapters, AC plug leads, instructions, all required batteries, and a hard carrying case Flashlight and NCV Function on Receiver; Accessories, and Hard Case
Includes	Transmitter Receiver Blade and Ground Prongs Alligator Clips 3' and 20' Lead Adapters AC Plug Leads Instructions All Required Batteries Hard Carrying Case
Video
Application	Trace Energized and Non-Energized Breakers, Fuses, and Wires
Electric Brake	No
Material	ABS and Electronic Components
Variable speed	No

Type	Circuit Tracer
Batteries	Transmitter: 6 × 1.5V AA Alkaline, Receiver: 4 × 1.5V AA Alkaline
Battery Life	Up to 24 hr
Drop Protection	6' (2 m)
Receiver Display	LCD with Backlight
Control Type	Transmitter and Receiver
Voltage	External Indicators for 12V, 48V, 120V, 240V, 480V
Frequency	Transmitter: AC 45Hz to 65Hz, Receiver: 33kHz
Ingress Protection	IP42
Pollution	2 Deg
Tests Continuity	No
Integral Lead Storage	No
Interchangeable Leads	Yes
Lead Length	20' (6.1 m)
Standard	CAT III 600V
Overall Length	16.12"
Overall Height	4"
Overall Width	12.75"
Weight	6.280 lbs
