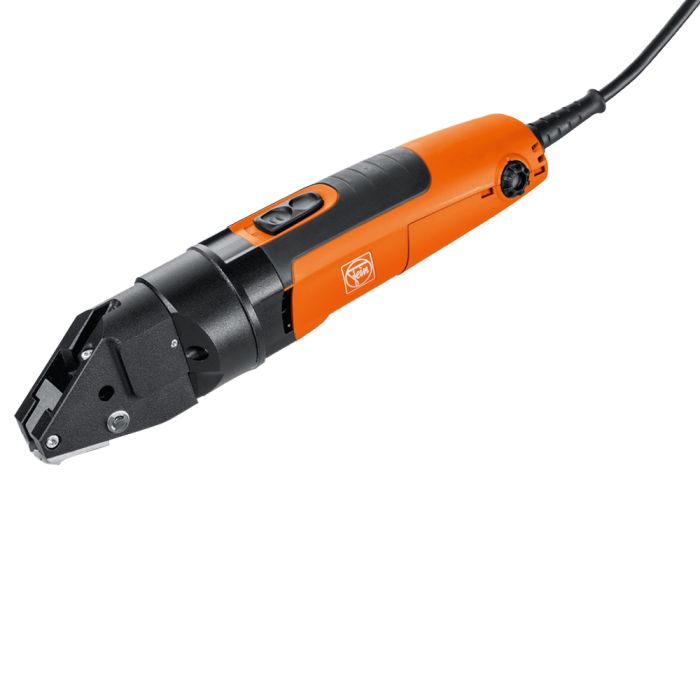

Fein 72303361090 BSS 2.0 E 14 Gauge High-Performance Slitting Shear
Ships direct from manufacturer
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Fein Power Tools |
|---|
| Condition | New |
|---|
| UPC | 04014586874838 |
|---|
| Features |
- High-performance slitting shears for stainless steel processing, spiral seam pipes and profiles
- The high-strength blades make it ideal for stiffening profiles in drywall work and cuts in stainless steel
- Durable cutting head for stationary use. The tool can be easily clamped into a vice
- Left and right curve cuts and distortion-free cutting possible with one continuous chip
- Powerful motor with enough torque even for the most difficult jobs. Suitable for spiral-seam pipes with connecting folds 4" x 1/32"
- Best suited for trimming and cutting
- Motor with outstanding performance and durability
- Cutting blade with outstanding service life
- Clean swarf removal prevents injuries or scratches on workpieces
- Stainless steel up to 16 gauge [1.5 mm]
- Adjustable stroke number
- Wide range of accessories
|
|---|
| Includes |
- 1 Cutting Blade (31308123008), Mounted
- 1 Pair of Cutting Bars (31308113009), Mounted
|
|---|
| Application | For Trimming Profiled Sections, Coil Cuts, Inside Cutouts, Profile Cuts, Notches |
|---|
| Electric Brake | No |
|---|
| Variable speed | No |
|---|
| Type |
Shear |
| Power Consumption |
350 W |
| Power Output |
210 W |
| Strokes (SPM) |
1,300 - 2,600 SPM |
| Cutting Speed |
6.6' - 13.1' |
| Steel 58,000 lbf/in² |
0.0787" |
| Steel 87,000 lbf/in² |
0.0591" |
| Steel 116,000 lbf/in² |
0.0512" |
| Non-Ferrous Metals Up to 36,000 lbf/in² |
0.1181" |
| Cutting Width |
1/4" |
| Radius of Smallest Curve |
9 3/4" |
| Immersion Diameter |
1/2" |
| Cable with Plug |
16.4' |
| Weight |
3.75 lbs |
| Sound Pressure Level LpA |
76,2 dB |
| Measurement Uncertainty of the Measured Value KpA |
3 dB |
| Sound Power Level LWA |
87,2 dB |
| Measurement Uncertainty of the Measured Value KWA |
3 dB |
| Peak Sound Value LpCpeak |
91 dB |
| Measurement Uncertainty of the Measured Value KpCpeak |
3 dB |
| Vibration Value 1 αhv 3-Way |
10,8 m/s² |
| Measurement Uncertainty of the Measured Value Kα |
1,5 m/s² |
