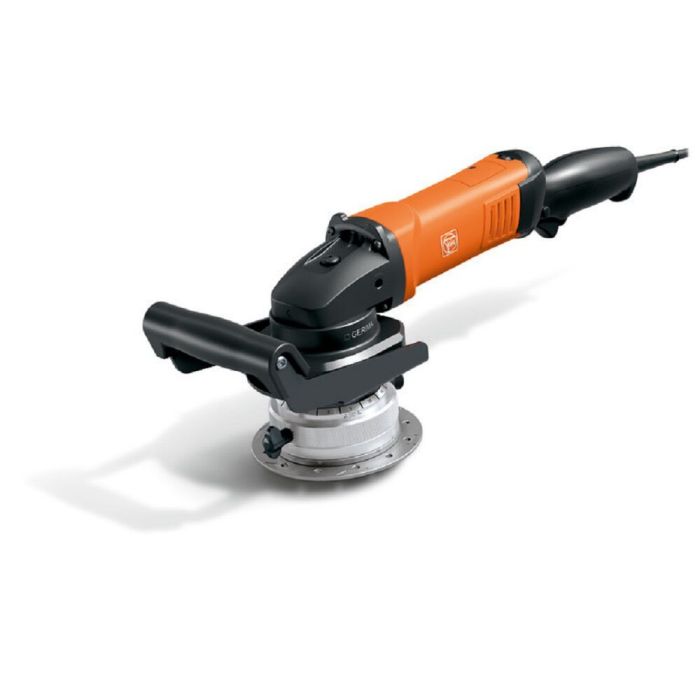

Fein 72381961090 KFH 17-15RT 5/8" Beveling Machine
Ships direct from manufacturer
Beveler for universal use with booster and spring technology for optimal weld seam preparation.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Fein Power Tools |
|---|
| Condition | New |
|---|
| UPC | 04014586892764 |
|---|
| Features |
- Cutting output 30 - 80 percent higher and significantly reduced vibration with new booster technology
- Spring Technology: Cushioning of rotation force yields increased occupational safety through low-vibration work
- FEIN ErgoGrip: Unique ergonomic concept with two-handed operation for low-fatigue work – patent pending
- Extensive user protection due to soft start, restart protection, jam monitoring, and electronic overload protection
- Efficient quick cutter change system for minimal interruptions
- High removal rate and low effort
- AutoStop dead man's switch
- Self-start lock
- Speed preselection
|
|---|
| Includes |
- Tool (Without Milling Head, without Guide Roller, without Inserts)
- 6 x Retaining Screws
- Copper Paste
- Allen Key 5 mm
- Torx TX 15 Screwdriver
- Tool Case
|
|---|
| Application | Installation Work, Chamfer Length Up to 1/4" at 45 Deg, Chamfer Length Up to 3/8" at 45 Deg, Chamfer Length Up to 5/8" at 45 Deg, Workshop Jobs |
|---|
| Electric Brake | No |
|---|
| Variable speed | No |
|---|
| Type |
Beveling Machine |
| Power Consumption |
1,560 W |
| No Load Speed (RPM) |
2,300 - 7,500 RPM |
| Maximum Chamfer Length at 45 Degree |
9/16" |
| Maximum Chamfer Height at 45 Degree |
7/16" |
| Chamfer Angle |
30 Deg / 37.5 Deg / 45 Deg / 60 Deg |
| Radius |
5/64", 1/8", 5/32" |
| Cutting Head Mounting |
3 x 2 KX insert |
| Support Plate Diameter |
5 3/8" |
| Cable with Plug |
13.1' |
| Weight |
14.11 lbs |
| Sound Pressure Level LpA |
90 dB |
| Measurement Uncertainty of the Measured Value KpA |
3 dB |
| Sound Power Level LWA |
101 dB |
| Measurement Uncertainty of the Measured Value KWA |
3 dB |
| Peak Sound Value LpCpeak |
104 dB |
| Measurement Uncertainty of the Measured Value KpCpeak |
3 dB |
| Vibration Value 1 αhv 3-Way |
ah, 3,7 m/s² |
| Vibration Value 2 αhv 3-Way |
ah, 4,3 m/s² |
| Measurement Uncertainty of the Measured Value Kα |
1,5 m/s² |
