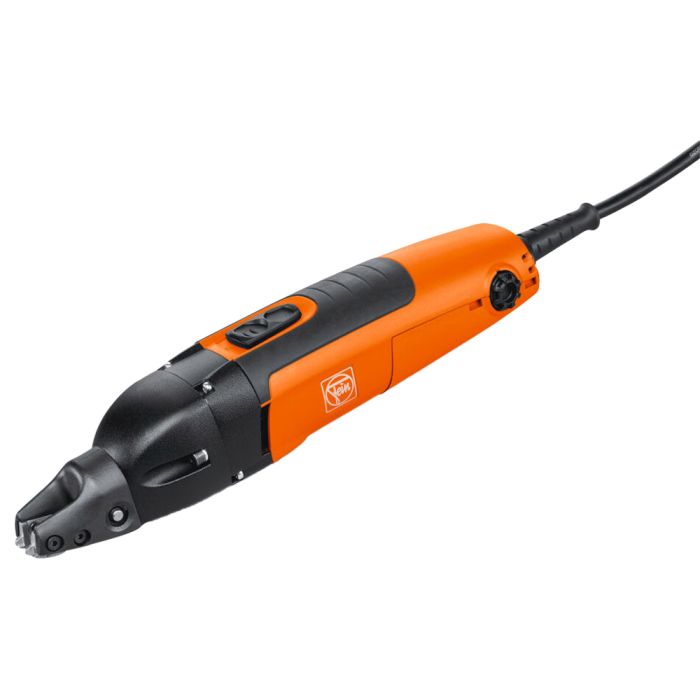

Fein 72303161090 BSS 1.6 E 210W Slitting Shear

SKU

72303161090

$699.95

Ships direct from manufacturer

WARNING: Proposition 65 Warning for California Residents View Details

More Information
Manufacturer	Fein Power Tools
Condition	New
UPC	04014586874692
Features	Easy-to-use and curve-compatible slitting shear for distortion-free cutting Rapid performance due to excellent view of the cutting line through the open-front cutting head Left and right curve cuts and distortion-free cutting possible with one continuous chip QuickIN for rapid, tool-free blade changing, with no further adjustment required Excellent ergonomics and low weight Motor with outstanding performance and durability Cutting blade with outstanding service life Clean swarf removal prevents injuries or scratches on workpieces Stainless steel up to 18 gauge [1.2 mm] Wide range of accessories Adjustable stroke number ¹ with blade for curves
Includes	Cutting Blade, Straight (31308150009), Mounted, Up to 1.6 mm Pair of Dies (31308153014), Mounted Wrench, Mounted Allen Key 2,5 mm
Application	Curve Cuts, Coil Cuts, Inside Cutouts, Profile Cuts, Notches
Electric Brake	No
Variable speed	No

Type	Slitting Shear
Power Consumption (Watt)	350 W
Power Output (Watt)	210 W
Strokes (SPM)	2,100 - 4,500 SPM
Cutting Speed	19.7' - 32.8'
Steel 58,000 lbf/in²	0.063"
Steel 87,000 lbf/in²	0.0472"
Steel 116,000 lbf/in²	0.0394"
Non-Ferrous Metals Up To 36,000 lbf/in²	0.0787"
Cutting Width	1/4"
Radius of Smallest Curve	3 1/2" (1 1/4")¹
Immersion Diameter	1/2" (1/4" )¹
Cable with Plug	16.4'
Weight	3.31 lbs
Sound Pressure Level LpA	81,1 dB
Measurement Uncertainty of the Measured Value KpA	3 dB
Sound Power Level LWA	92,1 dB
Measurement Uncertainty of the Measured Value KWA	3 dB
Peak Sound Value LpCpeak	93,3 dB
Measurement Uncertainty of the Measured Value KpCpeak	3 dB
Vibration Value 1 αhv 3-Way	5,7 m/s²
Measurement Uncertainty of the Measured Value Kα	1,5 m/s²
