Festool 576423 DF500 Q-Set DOMINO Joiner with New Systainer³

Product Description
Features/Specifications
Reviews

More Precise Joints : Oval shape, larger glued area, more stability. The DOMINO system unites the precision of a round dowel with the flexibility of a traditional flat dowel - the perfect solution for panel joints. The system consists of the DF 500 dowel jointer, DOMINOs in different sizes and a wide range of accessories for special applications. The Result : Extremely strong, invisible joints.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Festool
Condition	New
UPC	04014549355879
Features	Patented routing principle unique to hand-held machines for accurate work with no kickbacks Stops that are quick and easy to adjust, for accurate results Rotation-proof joint with DOMINO dowels providing maximum stability System accessories compatible with both DOMINO jointers Achieve Ideal Results More Quickly : Positioned in next to no time with the innovative stop cap system. The routing height and depth can be adjusted in seconds using the preselection slider Convenient and Safe : Unique patented pendulum routing principle enables smooth, accurate work as well as holes without any scorch marks Systems Get it Done : Domino, cutter, dowel up to 10 x 50 mm, flexible adjustment options and compatible system accessories for virtually unlimited jointing possibilities A System that Joins Everything Up : The DOMINO DF 500 is particularly easy to handle and offers almost unlimited jointing possibilities. No matter whether it is panel or cabinet construction, for lightweight frame or rack joints – the DF 500 impresses with maximum precision, flexibility and simple handling Unique Among Manual Machines and Patented by Festool : The DOMINO DF 500 jointer routing motion. The simultaneous rotating and pendulum movement of the router allows smooth working and holes without scorch marks. Thanks to the pendulum motion, the routers do not overheat, leading to an extremely long tool life Custom-Fit Alignment : The first DOMINO is positioned in a precision cut elongated hole, the next DOMINOs are inserted into wider elongated holes with play so that the joint can be aligned effortlessly. The result is a stable joint, protected against rotation from the first DOMINO Innovative Stop System : One of the main time-based advantages of working with the DOMINO DF 500 jointers arises from working without complicated measuring or marking – with the DOMINO DF 500, the fast and precise positioning is quite simple thanks to the stop catches Save Time When Using the Same Cutting Depth Over and Over Again : For great flexibility and precision we select our required routing depth using the detent lever lock. The options are 12 mm, 15 mm, 20 mm, 25 mm and 28 mm Maximum Stability : The special shape of the DOMINO in combination with expanding glue pockets and lateral longitudinal grooves gives the dowels a secure grip. We can use the Festool DOMINO DF 500 joining machine to process DOMINOs up to 10 x 50 mm in size. Also available as individually adjustable rods Works Every Time : Precision mitre routing using presettings or infinitely variable routing angle adjustment Ideal for Drawer Joints : Even thin workpieces from 12 mm can be easily connected – ideal for the sides of drawers DOMINOs are Available in Two Materials : Beech for interior applications and weatherproof, insect- and mould-resistant sipo DOMINOs for outdoor applications 100% Rotation-Proof : Right from ,the first DOMINO the joints are completely secured against rotation – without aligning the workpieces Environmentally Friendly : All DOMINOs originate from sustainable forest management. The beech dowels are certified by the pan european forest council (PEFC) Working with Extraction : Larger quantities of chips are created when working with the DOMINO DF 500 jointers. To improve chip removal out of the routed hole during routing, as well as to protect our health, we recommend always working with a dust extraction system DOMINO System Accessories : Accurate joining of round and square timbers, as well as for repeat hole spacing too: Compatible as a system accessory for the DOMINO XL and DOMINO DF 500 Antistatic Function : Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working Plug It : Removable, replaceable mains cable with safety lock for quick conversion Cleantec : Integrated bayonet fitting as the connecting element between the extractor and the tool

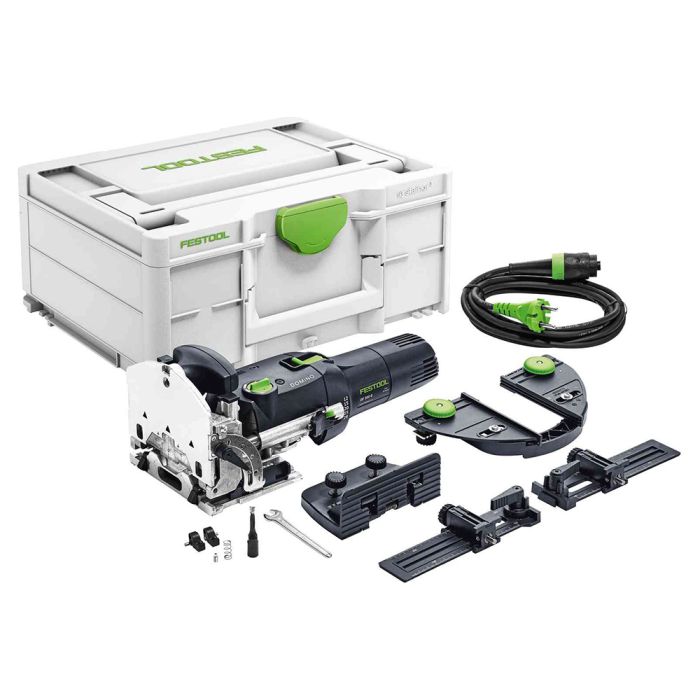

Includes	DOMINO Router D 5-NL 20 HW-DF 500 Additional Stop ZA-DF 500/700 Trim Stop LA-DF 500/700 Cross Stop QA-DF 500/700 Open Ended Spanner WAF 8 Systainer³ SYS3 M 187
Application	Furniture Manufacture, Shopfitting/Interior Fitting, Window Construction, Exhibition Stand Construction, for Panel Joins, for Frame and Rack Joints
Electric Brake	No
Variable speed	No

Suitable for Use with	4 x 20 mm to 10 x 50 mm Dowel
Type	Joining Machine
Power Consumption	420 W
Idle Engine Speed	25,500 min⁻¹
Depth Stop (Routing Depth)	12, 15, 20, 25, 28 mm
Maximum Routing Depth	28 mm
Slot Cutter Diameter	4, 5, 6, 8, 10 mm
Routing Height Adjustment	5 - 30 mm
Mitre Routing Angle	0 - 90 Deg
Dust Extraction Connection Diameter	27 mm
Cable Length	4 m
Product Weight	7.054 lbs
Drive Type	Mains
Uncertainty Vibration (K)	1.50 m/s²
Uncertainty Noise (K)	3.00 dB
Total Vibration Average (Amperage per Hour)	3.00 m/s²
A-Weighted Sound Pressure Level (LpA)	84.00 dBA
A-Weighted Sound Power Level (LWA)	95.00 dBA
