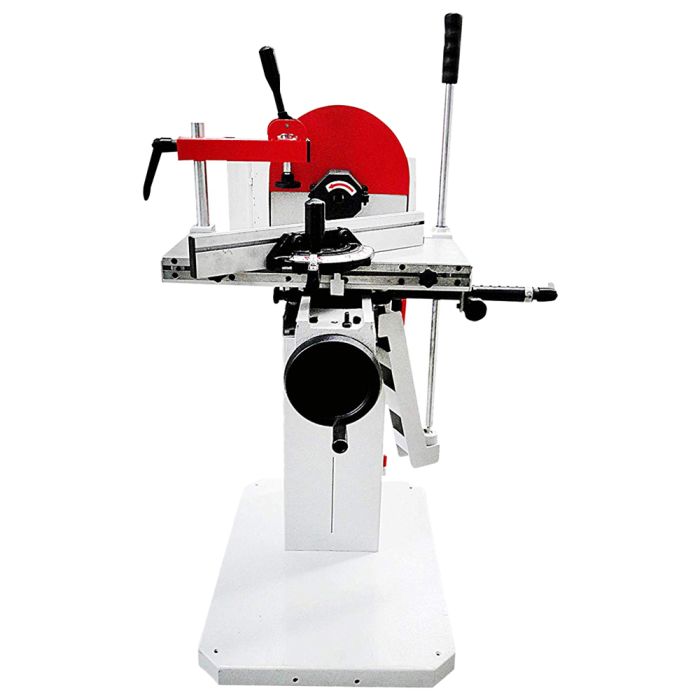

Maksiwa FH.16.C 5/8" x 4-7/8" Eccentric Chuck Mortiser

SKU
FH.16.C
$1,040.00
Ships direct from manufacturer ?

Mortiser FH.16.C Maksiwa is appropriate to drill horizontally in wood with straight cutter or drill. It has eccentric clamping device, articulated arms and extended base. The FH.16.C has a powerful 3HP motor; it is specially designed for the professional user and includes a multi-position hand lever and rotating mortising head for tricky off-table projects. Capable of punching smooth mortises in a range of stock–including hardwoods. This professional bench mortising machine is a must-have addition to any shop.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerMaksiwa
ConditionNew
Horsepower3 HP
Warranty2 Years
Type Chuck Mortiser
Clamp Device Eccentric
Motor Phase 1 Ph or 3 Ph
Mobile Table Dimension 18 1/8"
Horizontal Table Track Length 5 3/8"
Vertical Table Track Length 8 5/8"
Chuck Track 4 7/8"
Chuck Capacity 5/8"
Voltage Rating (1 Ph) 127 V/220 V
Voltage Rating (3 Ph) 220 V/380 V
Amperage (at 1 Ph/at 127 V) 34 Amps
Amperage (at 1 Ph/at 220 V) 17 Amps
Amperage (at 3 Ph/at 220 V) 9 Amps
Amperage (at 3 Ph/at 380 V) 5.2 Amps
Weight 242.5 lbs
Power 2,000 W
