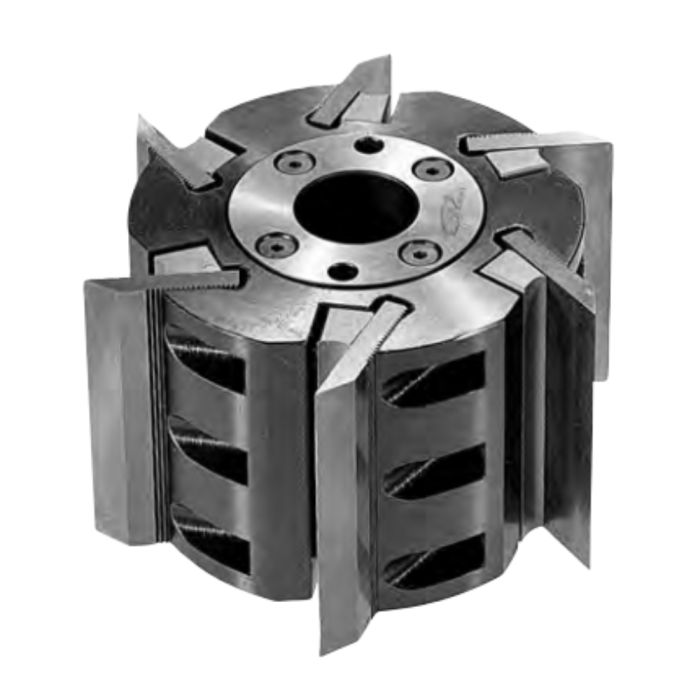

FS Tool 1903212, 6" x 4" 12Deg Corrugated Toolhead

SKU

1903212

$1,849.04

Ships direct from manufacturer

High tensile steel body with 6 teeth.

Available in 22° or 12° hook angle.

Precise serration (60°, 1.6mm pitch) ensure tight and accurate positioning of knives.

With dual-chamber hydro-clamping to ensure precise concentricity tolerance.

High radial running accuracy and low operating vibration.

Machine Type:On moulders.

WARNING: Proposition 65 Warning for California Residents View Details

More Information
Manufacturer	FS Tool
Condition	New
Features	Grease fittings mounted on both ends of toolheads for easy access Replacement Part: Screw for flanges M6 x 16mm (W500605), Grease Nipple (W501810), Release Valve (W501811), Grease Gun (1T463HP ), Wrench 3mm (W400113), Wrench 5mm (W400115)
Application	For Profiling at High Feed Rates With Superior Surface Finish, Use HSS or Stellite Tipped Knives for Solid Woods, Use Carbide Tipped Knives for Exotic Woods and MDF
Blade Thickness (Kerf)	4"
Number of Teeth	6
Speed (RPM)	8,000 RPM
