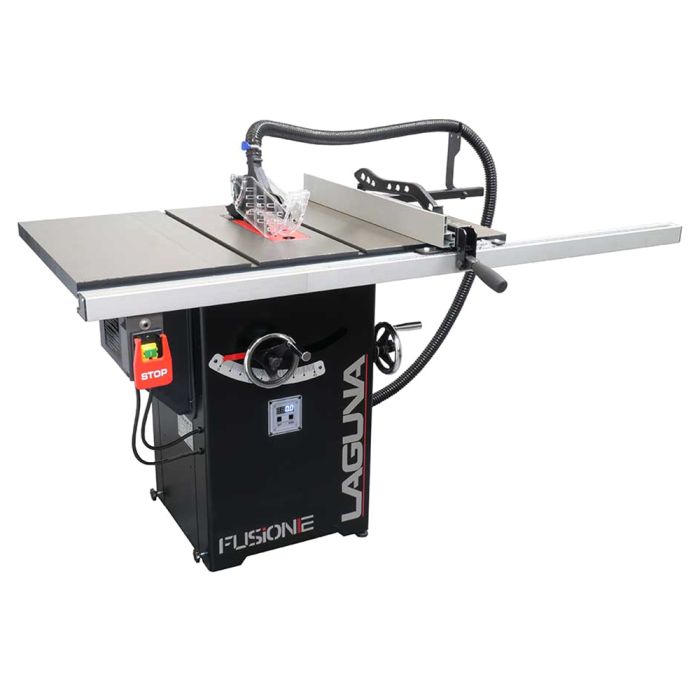

Laguna MTSF236110175-0130 F2 Fusion 110 V Table Saw Ships direct from manufacturer
The new Laguna Fusion line was developed for demanding woodworkers. Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection and sealed bottoms. All models are equipped with a precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from european saws. The hybrid fence on the Laguna Fusion offers the best of european and american fence features. This fence is not designed to be used on the left side of the blade. Rail or tube on the left side is provided only to make the on/off switch position. Permanently lubricated bearings and Acme screws are part of the internal DNA. Fusion 2 is the true successor to the original Fusion Table Saw. The task was simple make a saw that was more refined, more precise, and cleaner.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Laguna Condition New Features
Fusion dust collection system
Cabinet mounted design
Included tools and integrated tool storage
Full cabinet body
Trunion mounted to body not table
Cast iron table and wings
European Hi-Lo fence
Overhead dust collection
Quick-release blade guard and splitter
Fence mounted push stick
Tool less blade lock
Polished handles
Premium arbor and motor bearings
Mobility built into cabinet
Max rip right of blade with included fence and rails 37"
Digital Readout
Laguna has added DRO for the tilt on the Fusion F2 & F3 as standard equipment
European Hi/Low Fence
The rip fence on Fusion F2 & F3 now features a Hi/Low window to work with the European style Hi/Low fence
On-Board Tool Storage
Have our rip fence and other Fusion accessories out of the way but easily accessible
Includes
10 x 40T Carbide-Tipped Blade
Riving Knife
Miter Gauge
Video VIDEO
VIDEO
VIDEO
VIDEO
VIDEO
VIDEO
VIDEO
VIDEO
VIDEO
VIDEO
VIDEO
Horsepower 1.75 HP Motor Phase 1 Ph Speed (RPM) 4,500 RPM
Type Table Saw Dust Port Size 4" Blade Guard Dust Port Size 1 1/2" Voltage 110 V Frequency 60 Hz Table Saw Type Cabinet Maximum Blade Diameter 10" Arbor Size 5/8' Maximum Width of Dado 3/4" Blade Tilt Direction Left Max Blade Tilt 45 Deg Maximum Depth of Cut (@ 90°) 3 1/8" Maximum Depth of Cut (@ 45°) 2 1/8" Weight 276 lbs Overall Width 66 13/16" Overall Depth 39 3/8" Overall Height 42 7/8" Footprint Width 19 1/4' Footprint Length 42 1/2"
Blade Information
Blade Size 10" Riving Knife Thickness 3/32" Blade Body Thickness > 1/8" Blade Kerf Thickness < 5/64"
Table Information
Floor to Table Height 35" Table Size with Extension Wing Width 44" Table Size with Extension Wings Depth 27" Front of Table to Center of Blade 13 3/8" Front of Table to Blade at Maximum Cut 8 21/32" Main Table Thickness 1 1/2"
Fence Information
Fence Type Camlock T-Shape With Aluminum European Hi-Lo Fence Fence Rail Type Aluminum Extrusion/Angle Steel Fence Length 33 7/16" Fence Width 9 13/16' Fence Height 3" Fence Rail Length 66 9/16" Fence Rail Width 3" Fence Rail Height 2"
Construction Information
Table Precision-Ground Cast Iron Wings Precision Cast Iron Cabinet Pre-Formed Steel Trunnions Cast Alloy Body Assembly Pre-Formed Steel Fence Assembly Aluminum Extruded Body Rails Steel Miter Gauge Construction Aluminum Body With Steel Bar Guard Steel And Clear Plastic Body/Cabinet Finish Powder Coated Arbor Bearings Sealed and Permanently Lubricated
