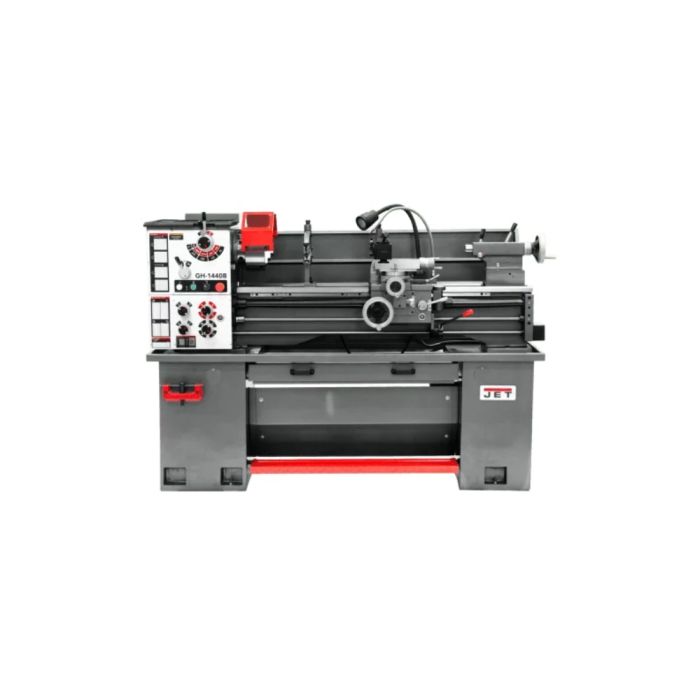

Jet JT9-323446 GH-1440B, Geared Head Bench Lathe with Stand & Newall NMS300

SKU
JT9-323446
$19,942.00
Ships direct from manufacturer?

This new JET GH-1440B Geared Head Bench Lathe is engineered for smooth, quiet operation and user versatility. Positioned on a heavy-duty cast iron stand with a newly added built-in footbrake, the GH-1440B includes precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability. The GH1440B also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00731325733990
Features
  • Compound and cross slide have backlash adjustment
  • Emergency stop within easy reach of the Operator
  • Enclosed gearbox design provides smooth, quiet operation
  • Gearbox gives wide range of inch & metric threading & feed capabilities with few gear changes
  • Spindle Spider available for ease of turning Gun barrels
  • Standard Accessories
  • Steady Rest with Roller Bearings
  • Tailstock may be offset for turning taper
Horsepower2 HP
Motor Phase1 Ph
Warranty2 Years
TypeBench Lathe with Stand & Newall NMS300
Carriage Travel37-2/5"
Compound Slide Travel3-1/2"
Cross Slide Travel7"
Length of Gap8"
Maximum Tool Size4/5" x 4/5"
Model NumberGH-1440B
Number of Inch Threads34
Number of Longitudinal and Cross Feed Rates32/32
Number of Metric Threads26
Number of Spindle Speeds8
Overall Dimensions (L x W x H)76-13/32" x 29-29/32" x 59-13/16"
Range of Cross Feeds (IPR)0.007 - 0.0187 IPR
Range of Inch Threads (TPI)4 - 56 TPI
Range of Longitudinal Feeds (IPR)0.002 - 0.0548 IPR
Range of Metric Threads0.4 - 7
Range of Spindle Speeds (RPM)130 - 2000 RPM
Spindle Bore2"
Spindle MountD1-5
Spindle Taper with SleeveMT6
Steady Rest Capacity0.31-2.95"
Swing Over Bed14"
Swing Over Cross Slide8"
Swing Through Gap20"
Tailstock Spindle Travel4"
Taper in Tailstock SpindleMT4
Weight1753 lbs
Width of Bed7.32"
Motor Voltage230 V
