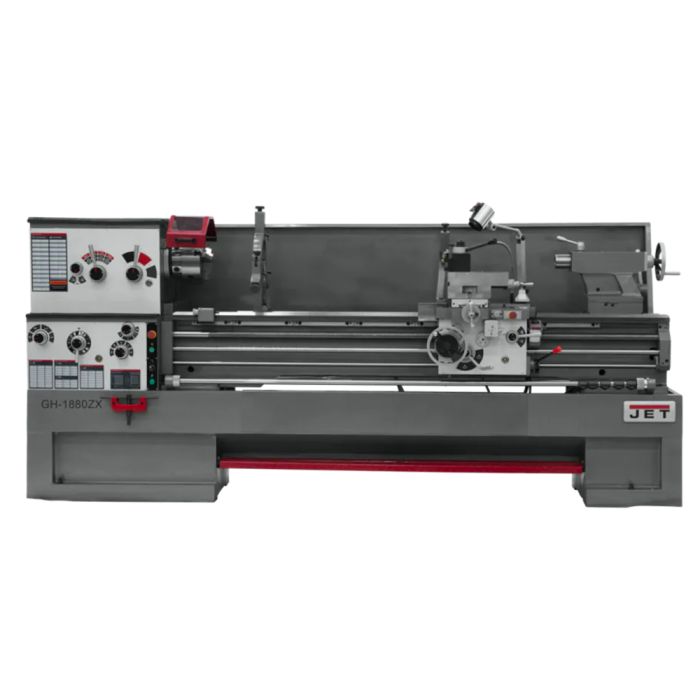

JET 321571 GH-1880ZX 230/460V Lathe with Newall DP700 Dro & Taper Attachment, 7 1/2HP/3Ph
Ships direct from manufacturer
Usually ships in 24-48 hours
The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
WARNING: Proposition 65 Warning for California Residents
View Details
More Information
Manufacturer
Jet
Condition
New
UPC
66275552098
Features
3 1/8 inch bore spindle is supported by two tapered and one ball bearings Chrome molybdenum headstock gears are hardened, ground and shaved Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces T-slotted compound slide featuring four-way tool post One piece cast iron base absorbs vibration allowing heavier cuts High quality ANSI Class 50 wear resistant cast iron bed ways are Removable gap allows large diameter work Five position automatic carriage stop increases productivity Meehanite Castings Siemens Electrics 10 inch 3-jaw scroll chuck with top reversing jaws 12 inch face plate 5pc. Quick change tool post set Follow rest Large capacity steady rest with ball bearing tips Fully integrated coolant system Full length splash guard and coolant return Large easy to use foot brake Articulating LED work lamp Electronic Chuck Key Holder Fitted top mats to hold tooling Centrally located controls with jog button Threading dial Mounting pads and levelers Live center Tolerance Test Certificate Tool box and adjusting tools E-Stop on Carriage for added safety Standard Equipment
PDFs
Catalog
Horsepower
7.5 HP
Motor Phase
3 Ph
Stationary type
Engine - Large Spindle Bore
Warranty
2 Year
Motor Voltage 230/460 V Prewired Voltage 230 V Size 18" x 80" Digital Readout Newall DP700 Accessory 1 Taper Attachment Swing Over Bed 16" Swing Over Cross Slide 10" Swing Through Gap 25 7/8" Length of Gap 12" Distance Between Centers 80" Spindle Bore 3 1/8" Spindle Mount D1-8 Number of Spindle Speeds 12 Range of Spindle Speeds (RPM) 25 - 1,800 RPM Spindle Taper with Sleeve MT-7 (MT-5) Number of Longitudinal and Cross Feed Rates 46/31 Range of Longitudinal Feeds (IPR) 0.0015 - 0.0900 IPR Range of Cross Feeds (IPR) 0.0006 - 0.0360 IPR Number of Inch Threads 61 Range of Inch Threads (TPI) 1 5/8 - 72 TPI Number of Metric Threads 24 Range of Metric Threads 0.05 - 20 Maximum Tool Size 1" x 1" Compound Slide Travel 5 1/8" Cross Slide Travel 9" Carriage Travel 74 5/16" Tailstock Spindle Travel 5" Taper in Tailstock Spindle MT-5 Follow Rest Capacity 1/2" - 3 1/2" Steady Rest Capacity 3/8" - 7 3/4" Width of Bed 13 1/8" Drive Geared Head Length 136" Width 44" Height 66"
