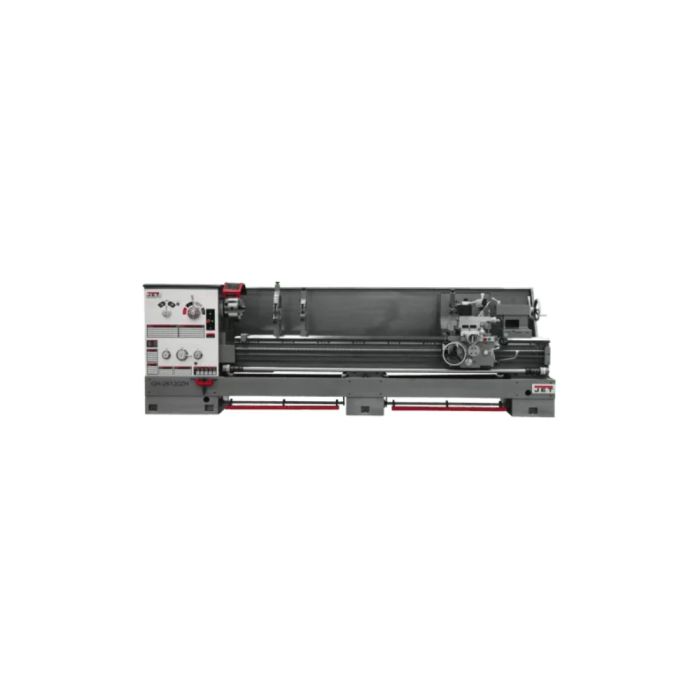

Jet JT9-321890-4 GH-26120ZH, 4-1/8" Spindle Bore Geared Head Lathe
SKU
JT9-321890-4
$66,024.00
Ships direct from manufacturer?
Constructed using the Certified Meehanite casting process for added durability, the JET ZH-Series 4-1/8” Spindle Bore Lathes provide consistent and reliable operation. Features include a clutch operated headstock with all headstock gears hardened and ground, a universal gearbox, fully integrated coolant system, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. These are the features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Jet |
|---|---|
| Condition | New |
| UPC | 00019907000440 |
| Features |
|
| Horsepower | 10 HP |
| Motor Phase | 3 Ph |
| Warranty | 2 Years |
| Type | Spindle Bore Geared Head Lathe |
|---|---|
| Bed Gap | 8" |
| Carriage Travel | 108-1/4" |
| Compound Slide Travel | 5-1/2" |
| Coolant Pump Motor | 1/8 |
| Diametral Pitch Threads Number | 22 |
| Drive | Geared Head |
| Length of Gap | 8" |
| Maximum Tool Size | 1-1/4" x 1-1/4" |
| Model Number | GH-26120ZH |
| Modular Pitch Threads Number | 18 |
| Modular Pitch Threads Range | 0.5 - 7 |
| Motor Voltage | 230/460 V |
| Weight | 9362 lbs |
| Number of Inch Threads | 48 |
| Number of Longitudinal and Cross Feed Rates | 65 |
| Number of Metric Threads | 22 |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (L x W x H) | 178" x 43" x 57" |
| Overall Height | 57" |
| Prewired Voltage (V.) | 176 x 43 x 57 V |
| Range of Cross Feeds (IPR) | 0.0040 - 0.0404 IPR |
| Range of Inch Threads (TPI) | 2 - 30 TPI |
| Range of Longitudinal Feeds (IPR) | 0.0023 - 0.0937 IPR |
| Range of Metric Threads | 1/4 |
| Range of Spindle Speeds (RPM) | 130 - 2000 RPM |
| Shipping Dimensions (L x W x H) | 178 " x 43 " x 57" |
| Size | 26" x 120" |
| Spindle Bore | 4-1/8" |
| Spindle Mount | D1-8 |
| Spindle Speeds | 12 |
| Spindle Taper | MT5 |
| Spindle Taper with Sleeve | MT-5 |
| Steady Rest Capacity | Small 25/32" - 4-29/32", Large 3-15/16" - 9-7/16" |
| Style | Engine - Large Spindle Bore |
| Swing Over Bed | 26" |
| Swing Over Cross Slide | 16-1/2" |
| Swing Through Gap | 34" |
| Tailstock Spindle Travel | 6" |
| Taper in Tailstock Spindle | MT-5 |
| Weight | 9362 lbs |
| Width of Bed | 16" |
| Wiring Remarks | Additional Fee required to rewire to 460V |
| Motor Voltage | 230/460 V |
