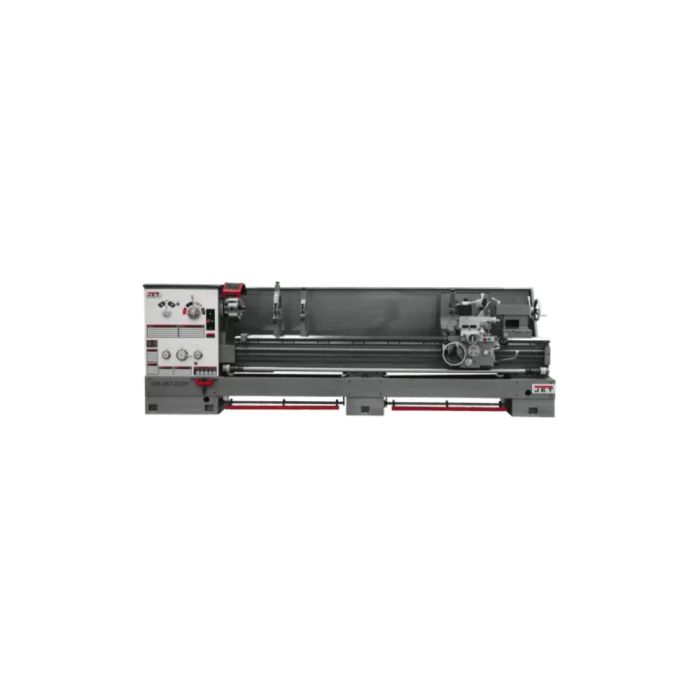

Jet JT9-321893 GH-26120ZH, Lathe with Taper Attachment

SKU
JT9-321893
$75,459.00
Ships direct from manufacturer?

Constructed using the Certified Meehanite casting process for added durability, the JET ZH-Series 4-1/8” Spindle Bore Lathes provide consistent and reliable operation. Features include a clutch operated headstock with all headstock gears hardened and ground, a universal gearbox, fully integrated coolant system, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. These are the features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00731325211757
Features
  • 12" 3 Jaw scroll chuck with top reversing jaws
  • 2 Steady rests with roller bearings
  • Bed ways are induction hardened and ground for durability
  • E-Stop on Carriage for added safety
  • Electronic Chuck Key Holder
  • Fitted top mats to hold tooling
  • Full Length Splash Guard
  • Heavy-duty tailstock and quill
  • Large easy to use foot brake
  • Rapid power traverse to cross slide and carriage
Horsepower10 HP
Motor Phase3 Ph
Warranty2 Years
Type Lathe
Carriage Travel 108-1/4"
Compound Slide Travel 5-1/2"
Drive Geared Head
Length of Gap 8"
Maximum Tool Size 1-1/4" x 1-1/4"
Model Number GH-26120ZH
Number of Inch Threads 48
Number of Longitudinal and Cross Feed Rates 65
Number of Metric Threads 22
Number of Spindle Speeds 12
Overall Dimensions (L x W x H) 178" x 43" x 57"
Range of Cross Feeds (IPR) 0.0040 - 0.0404 IPR
Range of Inch Threads (TPI) 2 - 30 TPI
Range of Longitudinal Feeds (IPR) 0.0023 - 0.0937 IPR
Range of Metric Threads 1/4
Range of Spindle Speeds (RPM) 130 - 2000 RPM
Size 26" x 120"
Spindle Bore 4-1/8"
Spindle Mount D1-8
Spindle Taper with Sleeve MT-5
Steady Rest Capacity Small 25/32" - 4-29/32", Large 3-15/16" - 9-7/16"
Style Engine - Large Spindle Bore
Swing Over Bed 26"
Swing Over Cross Slide 16-1/2"
Swing Through Gap 34"
Tailstock Spindle Travel 6"
Taper in Tailstock Spindle MT-5
Weight 9362 lbs
Width of Bed 16"
Motor Voltage 230/460 V
