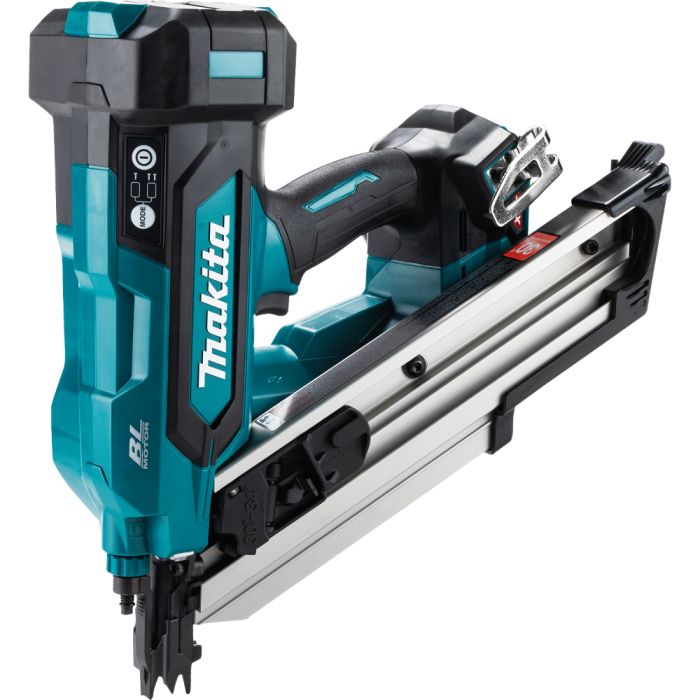

The 40V max XGT 30º Clipped Head 3-1/2" Framing Nailer (GNB01) delivers the power of pneumatic without all the hassles of a cord and compressor. It delivers class-leading cordless performance with up to two-times faster nailing speeds.
The 30º Clipped Head Framing Nailer drives full clipped-head nails into dense engineered lumber with power and ease. It drives up to 1,020 framing nails on a single charge using a 40V XGT 2.5Ah Battery (battery not included).
The GNB01 drives 30º collated framing nails from 2" to 3-1/2" in length and .113 to .131 in diameter. It features a two-mode selector switch that allows the operator to select between sequential nailing or bump fire options. It also features an anti-dry fire mechanism engineered to help prevent driving blanks.
The Framing Nailer features an anti-slip nose for controlled nailing at an angle. The GNB01 features a “tool-less" depth adjustment engineered for more precise flush and countersink nailing. It weighs only 11.9 lbs. with 40V XGT battery (battery not included) for reduced operator fatigue. It also features a rear lock-and-load magazine that holds up to 58 nails for maximum efficiency. An accessory for the GNB01 is the Extended Capacity Magazine Set that holds 97 Nails (1914P1-6, sold separately).
Convenience features include a built-in L.E.D. light that illuminates the work area, a belt hook with a retractable, extra-wide tool hook that secures the tool when not in use, and an ergonomically designed handle with a rubberized soft grip that provides increased comfort.
XGT is a system of equipment, tools, batteries, and chargers utilizing 40V max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart, and outlast the rest.
When compared to the Makita 18V LXT 30º Clipped Head 3 1/2" Framing Nailer (XNB07Z).
| Manufacturer | Makita |
|---|---|
| Condition | New |
| UPC | 197050013514 |
| Features |
|
| Includes |
|
| Battery Type | Lithium-Ion |
| Cordless System | 40V MAX |
| Warranty | 3-Years |
| Type | Nailer |
|---|---|
| Corded or Cordless | Cordless |
| Fastening Category | Framing |
| Nail Size | 2" - 3-1/2" 0.113" - 0.131" Shank Diameter Paper Collated |
| Maximum Magazine Capacity | 58 |
| Dimensions (L x W x H) | 12-7/8" x 7-3/8" x 14-1/8" |
| Nailer Type | Framing Nailer |
| Weight (with Battery, Sold Separately) | 11.9 lbs |
| Motor Type | Brushless |
