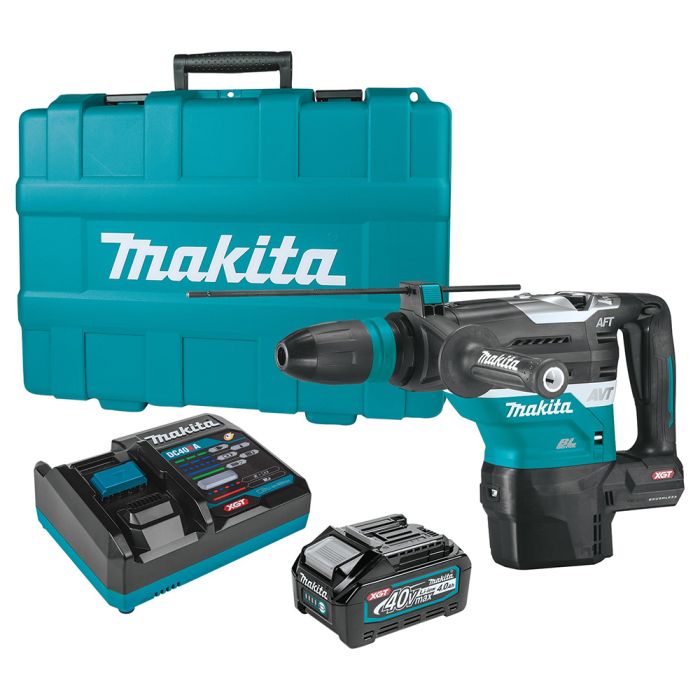

Makita GRH05M1 Max XGT AVT AFT, AWS Capable 40V 1‑9/16" SDS‑Max Cordless Rotary Hammer Kit

SKU
GRH05M1
$949.00
Ships direct from manufacturer?

The 40V max XGT brushless 1-9/16" AVT rotary hammer kit (GRH05M1) is a cordless concrete solution designed for heavy-load applications. It delivers the power, speed, and run-time for corded demands, without the cord. The GRH05M1 features Active Feedback-Sensing Technology (AFT), which electronically turns off the motor if rotation of bit is suddenly forced to stop, and Anti-Vibration Technology (AVT) for reduced vibration. More than just a padded handle, AVT is an internal counterbalance that uses air pressure to move counterweight pistons in the opposite direction of the drive piston to actively reduce vibration. In addition, the vibration-absorbing back handle and side handle further reduce vibration. For added durability in harsh job site conditions, Extreme Protection Technology (XPT) is engineered for improved dust and water resistance. Auto-Start Wireless System (AWS) uses Bluetooth technology for wireless power-on and power-off communication between the equipped tool and dust extractor. Once connected via AWS, the AWS-equipped dust extractor will automatically power on or off when the AWS-equipped cordless tool starts or stops, running only when the tool is in use. This increases productivity on a single charge and reduces continuous noise at the job or work site. Constant speed control automatically applies additional power under load for optimum performance. The torque limiting clutch is engineered to prevent gear damage by automatically disengaging the gears if the bit binds, and constant speed control automatically adds power to the motor to maintain speed under load to complete the most demanding jobs. Additional performance features include an electric brake, variable speed dial, built-in L.E.D. light, a soft-start to suppress start-up reaction, and Soft No-load function that automatically reduces the speed of the motor when idling. The Rotary Hammer has dust extraction capability an optional Makita dust attachment kit (sold separately). It has 2-modes of operation - "hammering with rotation" or "hammering only". It accepts SDS-PLUS bits. XGT is a system of equipment, tools, batteries and chargers utilizing 40V max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the competition.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerMakita
ConditionNew
Features
  • Outpower: Makita-built brushless motor along with 40V max XGT battery combine to deliver the power performance required for heavy-load application
  • Electric brake allows the tool to be repositioned faster for maximum productivity
  • Soft start suppresses start-up reaction for improved accuracy
  • "Soft no-load" function automatically reduces the speed of the motor when idling to help increase tool life and performance
  • Built-in L.E.D. light with an independent on and off switch illuminates the work area
  • Variable speed control dial enables the operator to match the speed to the application
  • Large Multi-finger power trigger for increased comfort during extended use
  • The digital communication within XGT optimizes performance to provide up to 2X longer sustained power under heavy-load applications
  • The digital communication within XGT actively monitors and protects against overload, over-discharge and overheating
  • XGT tools and batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
  • XGT batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications
  • The XGT rapid charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging
  • The XGT rapid charger’s digital display indicates battery charge level (-80%, +80%, 100%)
  • The XGT rapid charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
  • 40V max X2 XGT lithium-ion 4.0Ah battery (BL1840) reaches a full charge in 45 minutes or less
  • Only use genuine Makita batteries and chargers
Includes
  • 40V max XGT Brushless 1-9/16" AVT Rotary Hammer, AFT, AWS Capable (GRH05Z)
  • 40V Max XGT 4.0 Ah Battery (BL4040)
  • 40V Max XGT Rapid Optimum Charger (DC40RA)
  • Side Handle Assembly (123138-5)
  • D-Handle Assembly, HR4013C (196792-8)
  • Depth Gauge (331955-1)
  • Hammer Bit Grease (194683-7)
  • Cloth F/Wiping Oil (443122-7)
  • Tool Case
PDFs
Video

ApplicationFor a Range of Trades Including Mechanical, Electrical, Plumbing Contractors, Concrete Contractors, Road and Bridge Contractors, Utility Workers, Pest Control, Maintenance Operations
Suitable for Use withMakita 40V Max XGT Lithium-Ion Batteries
TypeRotary Hammer Kit
Battery TypeLithium-Ion
Warranty3 Years
Motor TypeBrushless
Cordless or CordedCordless
Cordless SystemMax XGT
Voltage36 V - 40 V
Battery Amperage Hour4 Ah
Maximum Capacity (Concrete Drilling)1 9/16"
Optimum Range (Concrete Drilling)5/8" - 1 1/4"
Maximum Capacity (Concrete Drilling with Core Bit)4-1/8"
Impact Energy (ft.lbs.) 8.4
Impact Energy (Joules)11.4 J
Maximum Speed (BPM) Variable Speed1,450 - 2,900 BPM
Maximum Speed (RPM) Variable Speed250 - 500 RPM
Bind-Up ControlYes
Vibration Control Yes
Vibration5 m/s²
Automatic-Start Wireless System (AWS)Capable (Transmitter Sold Separately)
Bit TypeAccepts SDS-MAX
Overall Length19 3/4"
Weight (with Battery)17 lbs
Overall Length with BL402519"
Overall Length with BL404019 3/4"
