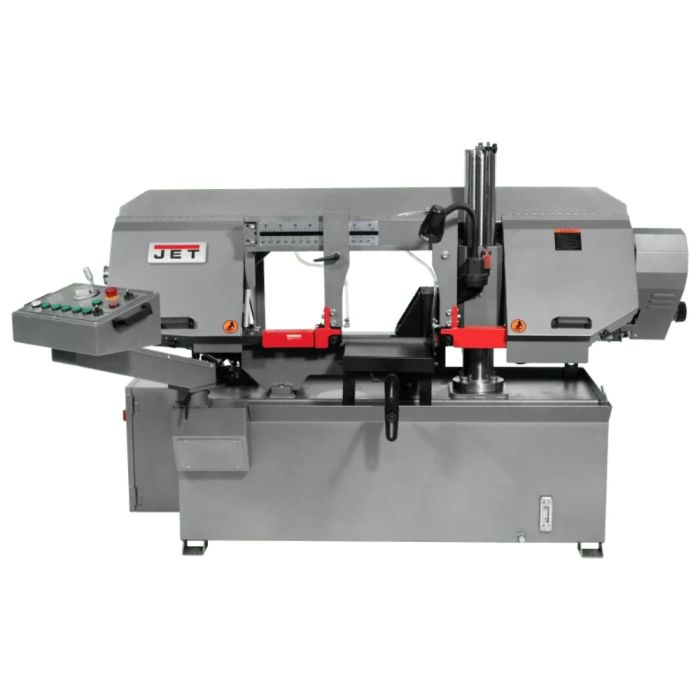

Jet JT9-413400 HBS1220DC, 12" x 20" Semi-Automatic Dual Column Bandsaw

SKU
JT9-413400
$17,489.00
Ships direct from manufacturer?

JET Dual Column Bandsaw is great for cutting large parts while keeping the blade as straight as possible while the head is descending during the cut.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00731325868647
Features
  • Heavy duty construction reduces vibration and deflection
  • Coolant is distributed through the blade guides through an integrated coolant system
  • Blade tension gauge helps to ensure the blade is in the correct cutting position
  • Built-in, self-propelled blade brush prevents chip build up in blade guides
  • Motor designed for continuous operation
  • Powerful gearbox for long life
  • Two column design for more productive cutting
Horsepower3 HP
Motor Phase1 Ph
Warranty2 Years
TypeBandsaw
Bed Height27"
Blade Length155-1/2"
Blade Size1-1/8" x 0.043" x 155-1/2"
Blade Speeds (SFPM)95 - 295 SFPM
Blade Speeds (SFPM)86,157, 228, 330 SFPM
Blade Wheel Diameter16"
Coolant Pump Motor1/8HP, 230/4660V, 3Ph
DriveMechanical Variable Speed
Electrics3HP, 230/460V, 3Ph
Model NumberHBS1220DC
Weight1420 lbs
Oil Pump Motor1HP, 230/460V, 3Ph
Overall Dimensions (L x W x H)81" x 42-1/2" x 54-1/2"
Prewired Voltage230 V
Rectangle at 90 Degrees12" x 20"
Round at 90 Degrees12"
Square at 90 Degrees12"
Throat Depth12" x 12"
Motor Voltage230/460 V
