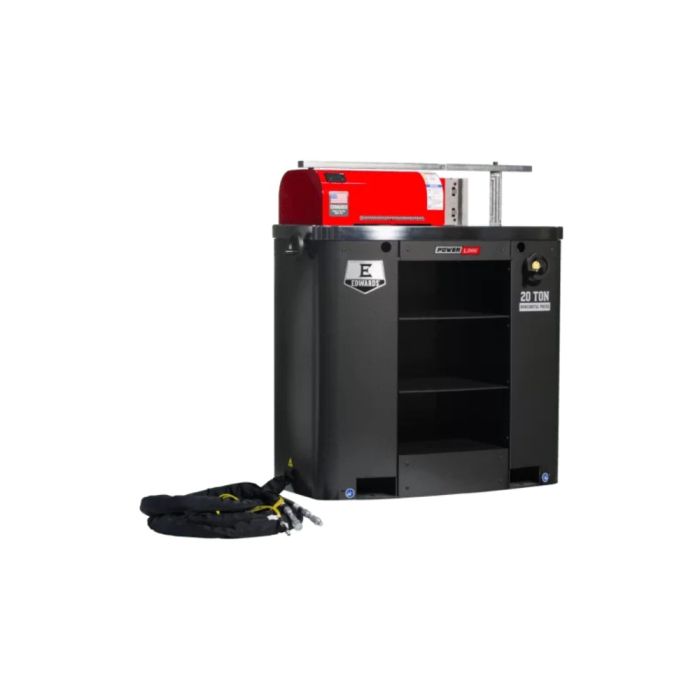

Edwards ED9-HAT6010, 20 Ton Horizontal Press and 1Ph Portable Power Unit

SKU

ED9-HAT6010

Special Price $16,109.10 Regular Price $17,899.00

Ships direct from manufacturer

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

The 20 Ton Horizontal Press is the go-to tool to from, break and straighten mild steel. Designed for maximum flexibility to accept a variety (including custom) tooling. Repetitive processes are simple with the proximity sensor and digital readout. This Horizontal Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Edwards Ironworkers
Condition	New
UPC	00731325581331
Features	20' quick-connect hoses for simple "plug & play" operation Designed for maximum flexibility with 4 pin locations to accept wide variety of custom tooling Digital encoder provides enhanced accuracy for precise repeatability Easy-to-use hand/jog controls with integrated E-Stop Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included) Robust construction with 2" machine heavy-duty table Ships with a standard 6" Brake with 4-Way Die able to create clips, brackets, hangers and more Storage shelves perfect for holding additional tooling
Warranty	1 Year

Type	Horizontal Press
Cylinder	2-1/4" Ram
Model Number	HAT6010
Net Weight	1862 lbs
Overall Dimensions (L x W x H)	54" x 96" x 97"
Product Dimensions	26" x 43" x 49"
Rating (Tons)	20 Ton
Stroke	10"
Table Dimensions	24" x 42"
Weight	1900 lbs
