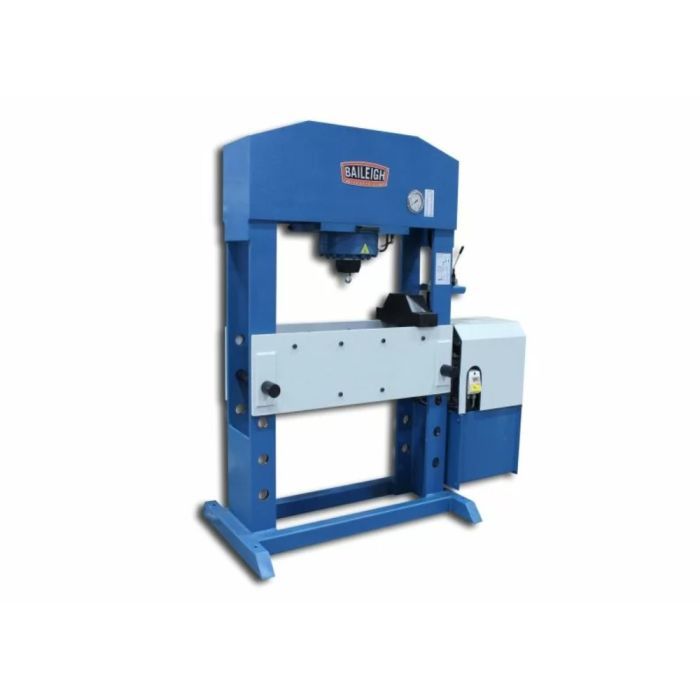

Baileigh Industrial BA9-1012426 HSP-110M-HD, 220V 3Ph 110 Ton Hydraulic H-Frame Press Ships direct from manufacturer
With a 1" plate steel framework and plenty of time-saving features, this hydraulic H-frame press sets the standard by which all other models should be measured.
Recommended for: General assembly, straightening work, and pressing bearings in and out of their housings.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Baileigh Industrial Condition New UPC 19907511120 Features 110-ton capacity 220V 3-phase power 42.12" working width 11.8" stroke 110-ton capacity. 42.12" working width. 8.66" diameter cylinder with 11.8" stroke. Runs on 220-volt 3-phase power. 7.5 hp motor can push all 110 tons of force without strain. Cylinder moves left or right within the framework so you can apply force for off-center projects. 2-speed down movement (rapid or slow descent) with a pressure regulator. 6.3" chrome piston automatically returns to the top position after the job is done. Welded steel construction maintains accuracy, holding up under the machine’s full force without flexing. Baileigh backs this hydraulic H-frame press with a 1-year parts warranty Speed (RPM) 3,000 RPM Warranty 1 Year
Type Hydraulic H-Frame Press Cylinder Movable Yes Maximum Pressure (PSI) 3858 PSI Minimum Return Speed (In./Sec) 0.393" / sec. Model Number HSP-110M-HD Piston Diameter 4.72"
