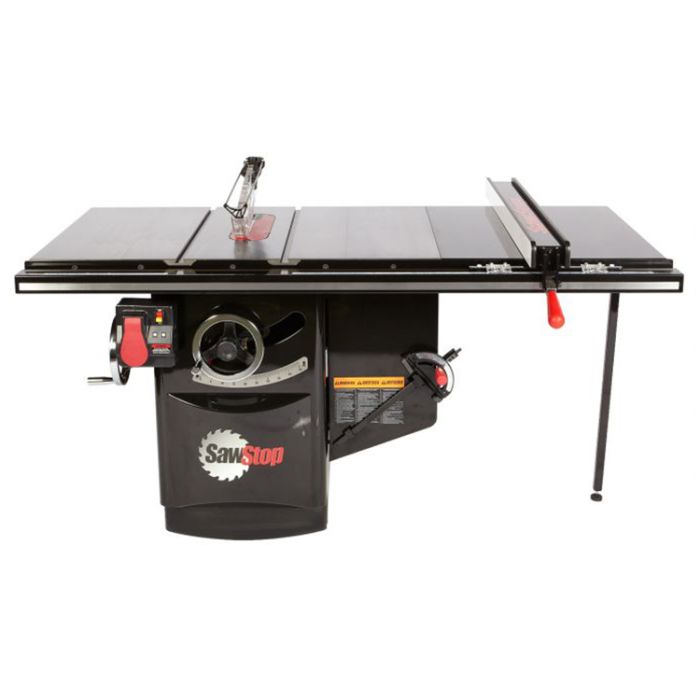

SawStop ICS53480-TGI236 Industrial 5HP, 3ph, 480v Cabinet Saw with 36” Industrial T-Glide Rip Fence, Rails & Extension Table Ships direct from manufacturer
Shipping Note : A $425 shipping charge will be applied to this item at checkout.
The SawStop Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10 inch cabinet saw available. The 5 HP, 3 PH, 480 V configuration with a 36 inch Industrial T-Glide Fence Assembly offers the durability, versatility and the peace of mind only SawStop’s patented safety system can provide.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer SawStop Condition New UPC 00857555005154 Features SawStop’s patented safety system Riving knife reduces the risk of kickback Tool-free quick-change blade guard mount Diagnostic system ensures the saw is ready to respond Dust-Collection Blade Guard 36 inch Industrial T-Glide Fence System Insert: Zero clearance, phenolic core, melamine surfaces Assembled weight - 36 inch T-Glide fence system (approximate weight, actual weight has some variance by motor size 635 lbs) Weight - table saw only (approximate weight, actual weight has some variance by motor size 530 lbs) Includes 2 x Cast Iron Extension Wings Miter Gauge Dust Collection Blade Guard Riving Knife 2 x Blade Wrenches Push Stick 10” Blade Table Insert Standard Brake Cartridge Owner’S Manual 2 x Hardware Packs 3 mm Hex Key 5 mm Hex Key 8 mm Hex Key Blade Spacing Adjustment Gauge 36" Rip Capacity and T-Glide Fence Assembly Horsepower 5 HP Motor Phase 3 Ph Size (Inch) 10"
Voltage 480 V Amperage 5.8 Amps Frequency 60 Hz Motor Type Totally Enclosed, Fan-Cooled Electric Motor Overall Saw Depth 36-1/2" Overall Saw Width 69-1/4" Overall Saw Height 34" Cabinet Footprint Depth 25" Cabinet Footprint Width 20" Cast Iron Table Depth 30" Cast Iron Table Width 24" Cast Iron Table Depth (with Extension Wings) 30" Cast Iron Table Width (with Extension Wings) 44" Extension Wings Depth 30" Extension Wings Width 10" Extension Table Depth 30" Extension Table Width 24" Teeth Per Inch 40 Arbore Size 5/8" Blade Tilt Left Blade Kerf 0.118" Blade Plate Thickness 0.078" Maximum Depth of Cutting Blade at 0 Deg 3-1/8" Maximum Depth of Cutting Blade at 45 Deg 2-1/4" Maximum Rip Left of Blade 12-1/2" Maximum Rip Right of Blade 36-1/2" (with Optional 36" Rails) Dado Diameter 8" Dado Maximum Width 13/16" Arbor Diameter at Blade 5/8" Main Bearing Inner Diameter 1-1/8" Main Bearing Outer Diameter 2-1/2" Second Bearing Inner Diameter 1" Second Bearing Outer Diameter 2" Table in Front of Blade (Maximum Elevation) 10-3/4" Table Behind Blade (Maximum Elevation) 10" Arbor Runout 0.001" Maximum Allowable Runout Table Flatness Measured Diagonally 0.010" Maximum Gap Belts 2 V-Ribbed Belts Blade Alignment with Miter Slot 0.010" Maximum Displacement Deviation of Miter Gauge Indexing Stops From Actual ±0.25 Deg Alignment Between Splitter and Blade 0.010" Maximum Difference Miter Slots T-Shaped at Top 3/4" Miter Slots T-Shaped at Bottom 1" Miter Slots T-Shaped at Deep 3/8" Miter Slots Center 11-1/8" Center-to-Center Miter Slots Info 5 1/2" (Arbor Flange to Center of Right Slot) Dust Collection Port Diameter 4" Dust Collection Blade Guard Polycarbonate, Extends Only 1-3/16" to Right of Blade Outside Blade Guard (Dust Collection) Port Diameter 1-1/2" Inside Blade Guard (Dust Collection) Port Diameter 1-1/4" Hand Wheels 8" Diameter Cast Iron with Chrome Handle Riving Knife / Splitter Thickness 0.090"
