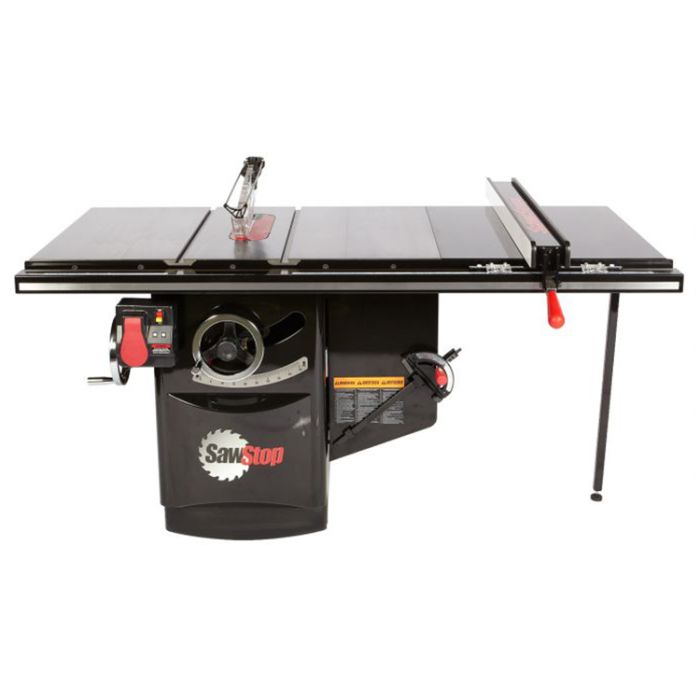

SawStop ICS73230-TGI236 Industrial 7.5HP, 3ph, 230v Cabinet Saw with 36” Industrial T-Glide Rip Fence, Rails & Extension Table

SKU
ICS73230-TGI236
$6,500.00
Ships direct from manufacturer?

Shipping Note: A $425 shipping charge will be applied to this item at checkout.

Notify me when the price drops
Add to Wish List Add to Compare
Shipping Policy Return Policy
The SawStop Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10 inch cabinet saw available. The 7.5 HP, 3 PH, 230 V configuration with a 36 inch Industrial T-Glide Fence Assembly offers the durability, versatility and the peace of mind only SawStop’s patented safety system can provide.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerSawStop
ConditionNew
UPC00857555005215
Features
  • SawStop’s patented safety system
  • Riving knife reduces the risk of kickback
  • Tool-free quick-change blade guard mount
  • Diagnostic system ensures the saw is ready to respond
  • Dust-Collection Blade Guard
  • 36 inch Industrial T-Glide Fence System
  • Insert: Zero clearance, phenolic core, melamine surfaces
  • Assembled weight - 36 inch T-Glide fence system (approximate weight, actual weight has some variance by motor size 635 lbs)
  • Weight - table saw only (approximate weight, actual weight has some variance by motor size 530 lbs)
Includes
  • 2 x Cast Iron Extension Wings
  • Miter Gauge
  • Dust Collection Blade Guard
  • Riving Knife
  • 2 x Blade Wrenches
  • Push Stick
  • 10” Blade
  • Table Insert
  • Standard Brake Cartridge
  • Owner’S Manual
  • 2 x Hardware Packs
  • 3 mm Hex Key
  • 5 mm Hex Key
  • 8 mm Hex Key
  • Blade Spacing Adjustment Gauge
  • 36" Rip Capacity and T-Glide Fence Assembly
Video
Horsepower7.5 HP
Motor Phase3 Ph
Size (Inch)10"
Specifications
Voltage 230 V
Amperage 17.8 Amps
Frequency 60 Hz
Motor Type Totally Enclosed, Fan-Cooled Electric Motor
Overall Saw Depth 36-1/2"
Overall Saw Width 69-1/4"
Overall Saw Height 34"
Cabinet Footprint Depth 25"
Cabinet Footprint Width 20"
Cast Iron Table Depth 30"
Cast Iron Table Width 24"
Cast Iron Table Depth (with Extension Wings) 30"
Cast Iron Table Width (with Extension Wings) 44"
Extension Wings Depth 30"
Extension Wings Width 10"
Extension Table Depth 30"
Extension Table Width 24"
Teeth Per Inch 40
Arbore Size 5/8"
Blade Tilt Left
Blade Kerf 0.118"
Blade Plate Thickness 0.078"
Maximum Depth of Cutting Blade at 0 Deg 3-1/8"
Maximum Depth of Cutting Blade at 45 Deg 2-1/4"
Maximum Rip Left of Blade 12-1/2"
Maximum Rip Right of Blade 36-1/2" (with Optional 36" Rails)
Dado Diameter 8"
Dado Maximum Width 13/16"
Arbor Diameter at Blade 5/8"
Main Bearing Inner Diameter 1-1/8"
Main Bearing Outer Diameter 2-1/2"
Second Bearing Inner Diameter 1"
Second Bearing Outer Diameter 2"
Table in Front of Blade (Maximum Elevation) 10-3/4"
Table Behind Blade (Maximum Elevation) 10"
Arbor Runout 0.001" Maximum Allowable Runout
Table Flatness Measured Diagonally 0.010" Maximum Gap
Belts 2 V-Ribbed Belts
Blade Alignment with Miter Slot 0.010" Maximum Displacement
Deviation of Miter Gauge Indexing Stops From Actual ±0.25 Deg
Alignment Between Splitter and Blade 0.010" Maximum Difference
Miter Slots T-Shaped at Top 3/4"
Miter Slots T-Shaped at Bottom 1"
Miter Slots T-Shaped at Deep 3/8"
Miter Slots Center 11-1/8" Center-to-Center
Miter Slots Info 5 1/2" (Arbor Flange to Center of Right Slot)
Dust Collection Port Diameter 4"
Dust Collection Blade Guard Polycarbonate, Extends Only 1-3/16" to Right of Blade
Outside Blade Guard (Dust Collection) Port Diameter 1-1/2"
Inside Blade Guard (Dust Collection) Port Diameter 1-1/4"
Hand Wheels 8" Diameter Cast Iron with Chrome Handle
Riving Knife / Splitter Thickness 0.090"



Warrany
SawStop warrants to the original retail purchaser of a new industrial cabinet saw from an authorized SawStop distributor that the saw will be free from defects in material and workmanship for TWO YEARS from the date of purchase, and that the electric motor supplied with the saw will be free from defects in material and workmanship for FIVE YEARS from the date of purchase.

SawStop warrants to the original retail purchaser of a refurbished industrial cabinet saw from an authorized SawStop distributor that the saw will be free from defects in material and workmanship for ONE YEAR from the date of purchase, and that the electric motor supplied with the saw will be free from defects in material and workmanship for THREE YEARS from the date of purchase.

This warranty does not apply to defects arising from misuse, abuse, negligence, accidents, normal wear-and-tear, unauthorized repair or alteration, or lack of maintenance. This warranty is void if the saw or any portion of the saw is modified without the prior written permission of SawStop, LLC, or if the saw is located or has been operated outside of the country where the authorized SawStop distributor from whom the saw was purchased resides.

Please contact SawStop to take advantage of this warranty. If SawStop determines the saw is defective in material or workmanship, and not due to misuse, abuse, negligence, accidents, normal wear-and-tear, unauthorized repair or alteration, or lack of maintenance, then SawStop will, at its expense, and upon proof of purchase, send replacement parts to the original retail purchaser necessary to cure the defect.

​SawStop disclaims any and all other express or implied warranties, including merchantability and fitness for a particular purpose. SawStop shall not be liable for death, injuries to persons or property, or incidental, consequential, contingent or special damages arising from the use of the saw.

This warranty gives you specific legal rights. You may have other rights, which vary from state to state.

No Warranty of Safety

It is important to understand that SawStop® saws do not prevent injuries. They work to minimize the severity of injuries. In fact, an injury must occur before the SawStop® safety system reacts. The severity of the injury will depend on the speed at which a person contacts the spinning blade. You may incur a serious injury on a SawStop® saw. If you decide to use the saw in Bypass Mode, the safety system will be disabled and it will not activate in the event you contact the spinning blade.
