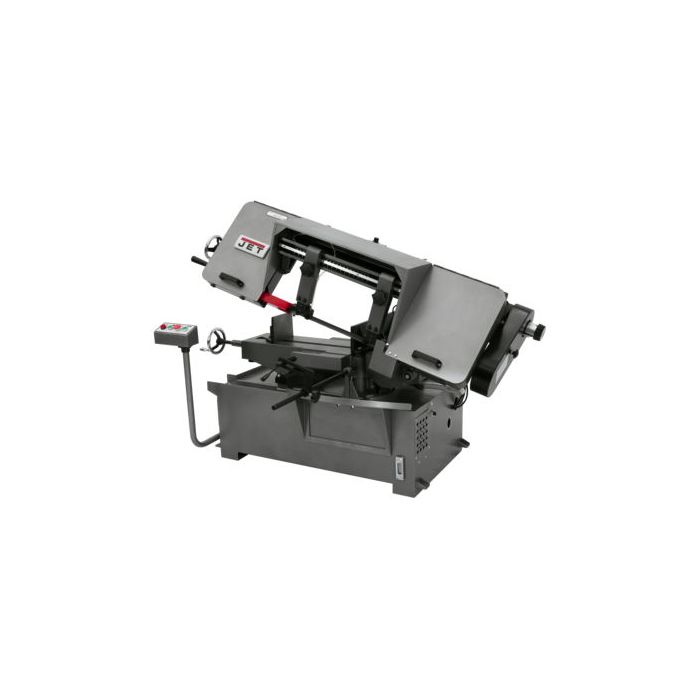

JET 414484 J-7040M-4 10" x 16" Horizontal Mitering Bandsaw, 2 HP, 230/460V, 3 Ph Ships direct from manufacturer
Usually ships in 24-48 hours
The Jet J-7040M-4 (SKU 414484) Horizontal Mitering Bandsaw has a variable speed drive system that allows the operator to fine tune the blade speed fast and easily. Exclusive 6 contact point blade adjustable guide assemblies. Heavy duty transmission utilizes hardened and ground gears operating in an oil bath.
Variable speed, 1125 lbs.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Jet Condition New UPC 66275609104 Features
Variable speed drive system allows the operator to fine tune the blade speed fast and easily
Exclusive 6 contact point blade adjustable guide assemblies
Heavy duty transmission utilizes hardened and ground gears operating in an oil bath
Counter balanced feed system is controlled by dual system of counter balance springs working with a hydraulic cylinder
Swing away control panel
Cast iron blade wheels
Coolant system
1" Bi-metal blade
Adjustable material stop
PDFs Pdf
Horsepower 2 HP Stationary type Horizontal Mitering Warranty
2 Year Warranty
Bed Height (in.) 25-1/2 Blade Size (in.) 1 x .035 x 135 Blade Speeds (SFPM) 100-350 Cutting Capacity (in.) 10 x 16 Head Swivels (deg.) 45 Height 48 inch Length 76 inch Model Number J-7040M-4 Motor 2HP, 230/460VAC, 3PH, Prewired 460V Net Weight 1125 pound Part Number 414484 Rectangle at 90 Degrees (in.) 2 x 16 / 10 x 14 Round at 45 Degrees (in.) 8-1/2 Round at 90 Degrees (in.) 10 Square at 90 Degrees (in.) 10 Web Description J-7040M-4 10 x 16 MITER BANDSAW 2HP, 460V, 3PH Width 30 inch
