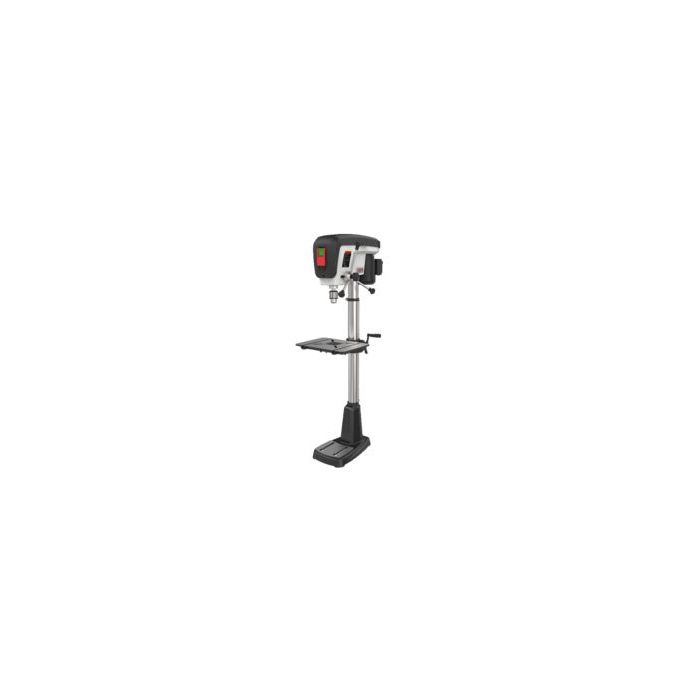

Jet 716250 JDP-15F 15" Floorstanding Drill Press, 115 VAC, 9 A, 1 Phase, 3/4 HP TEFC, Cast Iron Base, 210 - 3500 RPM

SKU

716250

$1,229.99

Ships direct from manufacturer

Drill Press, Floorstanding, 15 inch Swing, 2-3/4 inch Column Diameter, 5/8 inch Chuck, 3-1/8 inch Spindle Travel, 30-1/2 inch Spindle Distance to Table, 17 inch Width, 12-1/2 inch Length Table, 18-7/8 inch Length, 11-3/8 inch Width Base, Cast Iron Base Material, 115 VAC, 9 A, 1 Phase, 3/4 HP TEFC Motor Specification, 210 - 3500 RPM Speed, 45 Deg Left/Right Table Tilt, MT2/JT3 Spindle Taper, 16 Spindle Speed, 172 lb Weight, CSA Certified, 5 years Warranty

Notify me when the price drops

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Description
Features/Specifications
Reviews

Product Description

JET JDP-15F, 15 inch Floorstanding Drill Press. From a full 3-1/8 inch of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a one-handed belt-tensioning system and a large 12-1/2 inch x 17 inch work table.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Jet
Condition	New
UPC	731325424270
Features	Spindle travels a full 3-1/8 inch with one revolution of the handle Large 12-1/2 inch x 17 inch precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project One-handed belt tensioning allows for rapid speed changes Power switch features a safety key and large, paddle-style off button Integrated depth stop makes repetitive drilling quick and easy Xacta-X laser system easily identifies the drill center Long-lasting, built-in LED work light reduces shadows Table edge lip designed to make clamping easy Replaceable MDF table insert Large cast iron base provides stability Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system CSA Certified
PDFs	716250_SpecSheet.pdf 716200_InstructionManual.pdf
Horsepower	0.75 HP
Motor Phase	1 Ph
Stationary type	Floorstanding Model
Warranty	5-Year

Swing	15"
Spindle Travel	3-1/8"
Number of Spindle Speeds	16
Spindle Taper	MT2/JT3
Spindle Speed Range (RPM)	210 - 3,500 RPM
Spindle Distance to Table (Max.)	30-1/2"
Spindle Distance to Base	46-1/2"
Table Size (L x W)	12-1/2" x 17"
Table Tilt	45° Left and Right
Chuck Size	5/8"
Column Diameter	2-3/4"
Base Size	18-7/8" x 11-3/8"
Motor Voltage (V)	115 V
Prewired Voltage (V)	115 V
Motor Amps	9 Amps
Assembled Machine Dimensions (L x W x H)	27" x 17" x 63-1/4"
