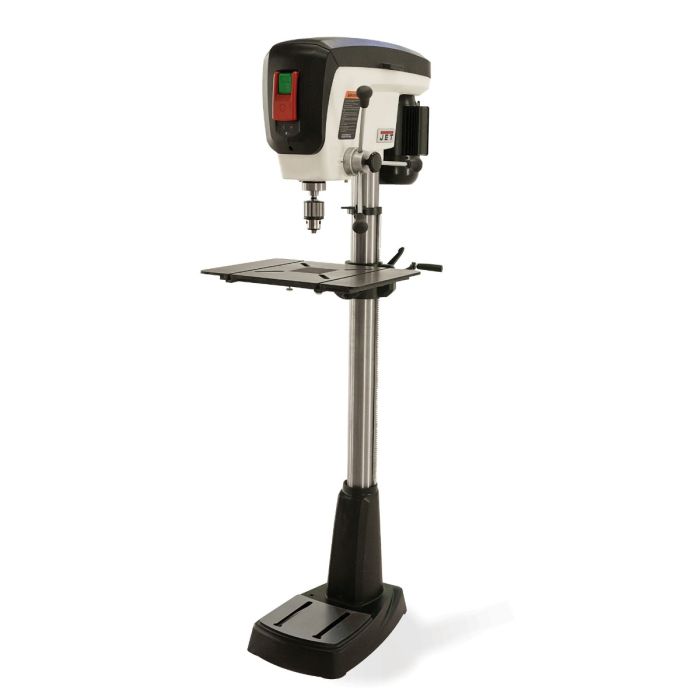

JET 716300 JDP-17 17" Drill Press, 3/4 HP, with Laser

SKU
JT9-716300
$1,649.00
Ships direct from manufacturer ?
If item is listed as "In Stock", this would be for Pickup Only in Fall River, MA. Orders placed that require shipping will be shipped directly from the manufacturer. Lead times vary.
Introducing the new JET JDP-17, 17 inch Drill Press. From a full 5 inch of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14 inch x 19inch work table provides plenty of support with an edge designed for easy clamping.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC73132534001
Features
  • Spindle travels a full 5 inch with one revolution of the handle
  • Large 14 inch x 19 inch precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
  • One-handed belt tensioning allows for rapid speed changes
  • Power switch features a safety key and large, paddle-style off button
  • Integrated depth stop makes repetitive drilling quick and easy
  • Xacta-X laser system easily identifies the drill center
  • Long-lasting, built-in LED work light reduces shadows
  • Table edge lip designed to make clamping easy
  • Replaceable MDF table insert
  • Large cast iron base provides stability
  • Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
  • CSA Certified
PDFs
Horsepower0.75 HP
Motor Phase1 Ph
Stationary typeFloorstanding Model
Warranty5 Year
Motor Voltage115 V
Prewired Voltage115 V
Amperage9 Amps
Recommended Circuit Size15 Amps
Base Size20" x 12-5/8"
Column Diameter3-5/32"
Chuck Size5/8"
Swing16-7/8"
Spindle Travel5"
Number of Spindle Speeds16
Spindle Speed Range (RPM)210 - 3500 RPM
Maximum Spindle Distance to Table30"
Spindle Distance to Base46-1/2"
Table Size Length14"
Table Size Width19"
Table Tilt90 Left and Right Deg
Chuck Distance to Base42-7/8"
Chuck Distance to Table25-7/8"
Assembled Machine Dimensions Length28-1/2"
Assembled Machine Dimensions Width19"
Assembled Machine Dimensions Height65"
