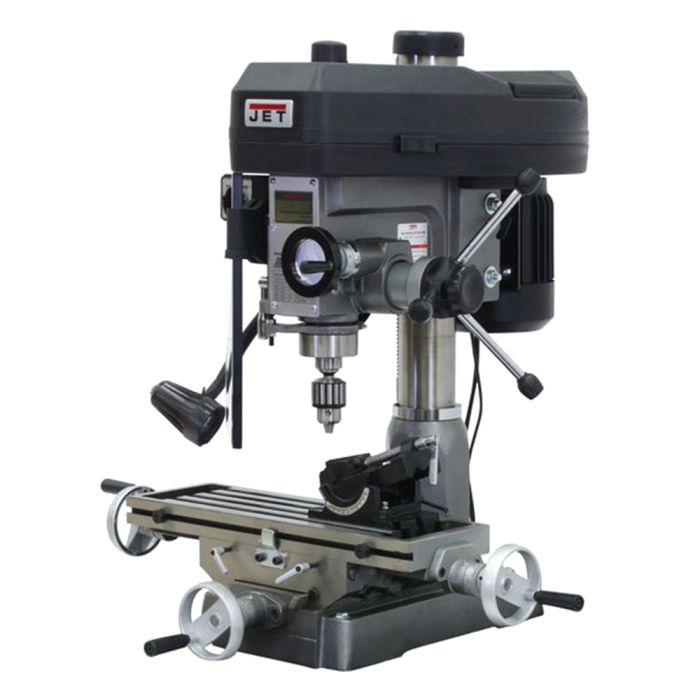

JET 350116 JMD-15 Mill/Drill with Acu-Rite 203 Dro

SKU
350116
$5,459.00
Ships direct from manufacturer?
Usually ships in 24-48 hours
Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Jet
Condition New
UPC 66275511054
Features
  • One-piece cast iron column for added support
  • 360 degree head swivel
  • Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
  • Worklamp
  • Base taper allows for easier clean up
  • 1/2 inch drill chuck, chuck arbor
  • Draw bar
  • Drill Press angle vise
  • Drill chuck guard
  • UL listed motor
  • Adjustable carbide facemill
  • Extra large worktable
  • Mill Drill Stand, p/n 320020, shown in some images, is optional
  • Easy to read external depth gauge
PDFs
Horsepower 1 HP
Motor Phase1Ph
Digital ReadoutAcu-Rite 203
Drilling Capacity1"
Face Mill Capacity2 1/2"
End Mill Capacity1/2"
Swing14 1/2"
Maximum Distance Spindle to Table14 1/2"
Spindle TaperR-8
Spindle Travel3 1/2"
Quill Diameter2 7/16"
Column Diameter3 5/8"
Number of Spindle Speed12
Range of Spindle Speed110 - 2,580 RPM
Table Longitudinal Travel14"
T-Slots Number4
T-Slots Size9/16"
T-Slot Centers1 13/16"
Base Dimensions12 1/2" x 19 3/4"
Table Length7 1/2"
Table Wight23"
Table Weight Capacity350 lbs
Voltage230 V
Length38"
With37 1/2"
Height42"
