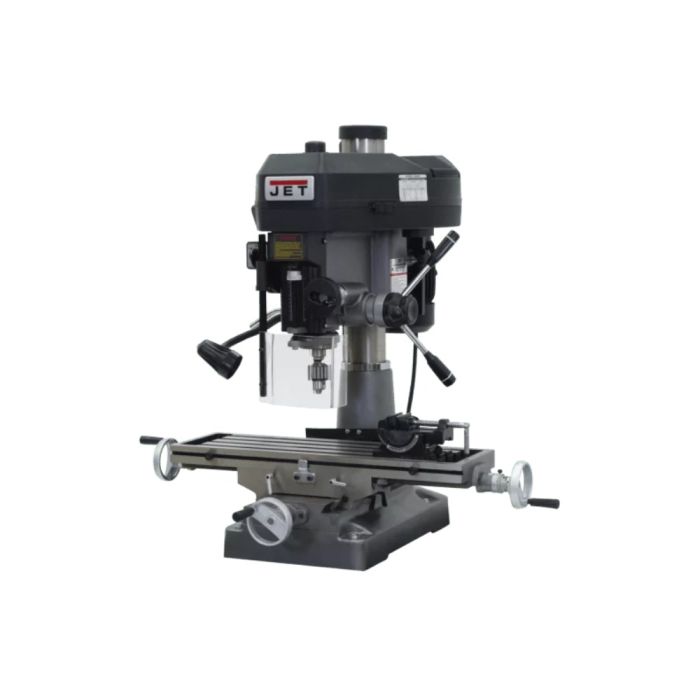

Jet JT9-350401 JMD-18, Mill/Drill with ACU-RITE 203 DRO

SKU
JT9-350401
$7,424.00
Ships direct from manufacturer?

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00662755977237
Features
  • 1/2” Drill chuck, chuck arbor
  • 360° head swivel
  • Adjustable carbide facemill
  • Base taper allows for easier clean up
  • Easy to read internal depth gauge
  • Forward and Reverse Switch
  • Mill Drill Stand, p/n 320020, shown in some images, is optional
  • One-piece cast iron column for added support
  • Positive quick-stop knob and easy to read internal depth gauge
  • UL Listed
Horsepower2 HP
Motor Phase1 Ph
Warranty2 Years
TypeMill/Drill with ACU-RITE 203 DRO
Base Dimensions15-3/4" x 23-3/4"
Column Diameter4-1/2"
Face Mill Capacity3"
Maximum Distance Spindle to Table17-1/2"
Model NumberJMD-18
Number of Spindle Speeds12
Overall Dimensions (L x W x H)47" x 40" x 51"
Quill Diameter3"
Range of Spindle Speeds (RPM)150 - 3,000 RPM
Spindle Taper (In. x TPI)R-8
Spindle Travel5"
Swing15-7/8"
Table Longitudinal Travel20-1/2"
Table Size (L x W)9-1/2" x 31-3/4"
T-Slot Centers1-13/16"
T-Slots Number and Size4 and 5/8"
Weight660 lbs
Work Table Weight Capacity400 lbs
Motor Voltage115/230 V
