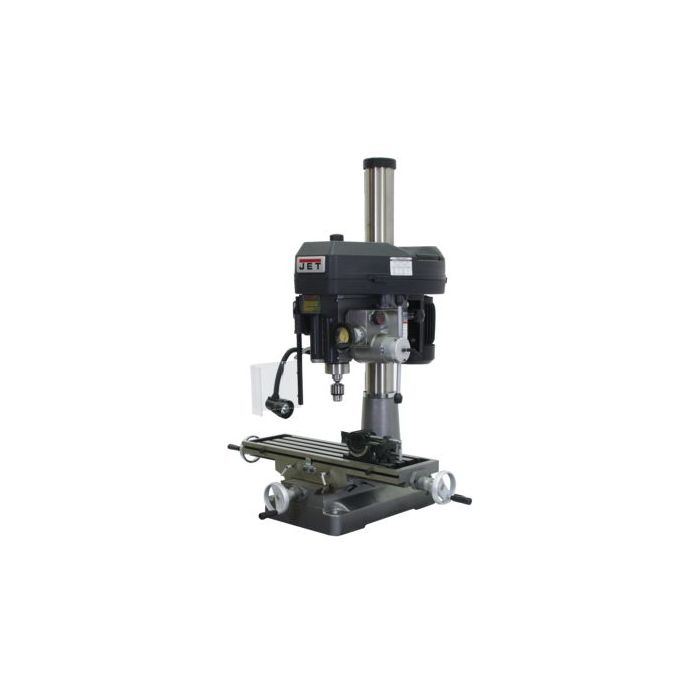

JET 350020 JMD-18PFN, Built-in Power Downfeed, 2HP, 1Ph, 230V Only

SKU
JT9-350020
$5,059.00
Ships direct from manufacturer ?
Usually ships in 24-48 hours
Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD milling drilling machines possess the advantages of space-saving versatility, affordability and light machining capability.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC66275580793
Features
  • One-piece cast iron column for added support
  • Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
  • Base taper allows for easier clean up
  • Drill press angle vise
  • Extra large worktable
  • Positive quick-stop knob and easy to read internal depth gauge
  • 360° head swivel
  • Work lamp
  • Heavy-duty power downfeed with manual fine feed (JMD-18PFN)
  • 1/2" drill chuck, chuck arbor
  • Draw bar
  • Drill chuck guard
  • Adjustable carbide facemill
  • Mill drill stand, p/n 320020, shown in some images, is optional
  • UL listed motor
PDFs
Horsepower2 HP
Motor Phase1 Ph
Warranty2-Year
PowerfeedDownfeed
Drilling Capacity1-1/4"
Face Mill Capacity3"
End Mill Capacity3/4"
Swing15-7/8"
Max Distance Spindle to Table26"
Spindle TaperR-8
Spindle Travel5"
Spindle Travel Auto4-1/4"
Range of Power Downfeeds0.0047", 0.007", 0.001"
Quill Diameter3"
Column Diameter4-1/2"
Number of Spindle Speeds12
Range of Spindle Speeds150 - 3000 RPM
Table Size (L x W)9-1/2" x 31-3/4"
Maximum Table Travel20-1/2"
Number of T-Slots4
T-Slot Size5/8"
T-Slot Centers2-1/8"
Base Dimensions15-3/4" x 23-3/4"
Length42-1/2"
Width39-3/4"
Depth51-1/2"
Motor Voltage115/230 V
Prewired115 V
