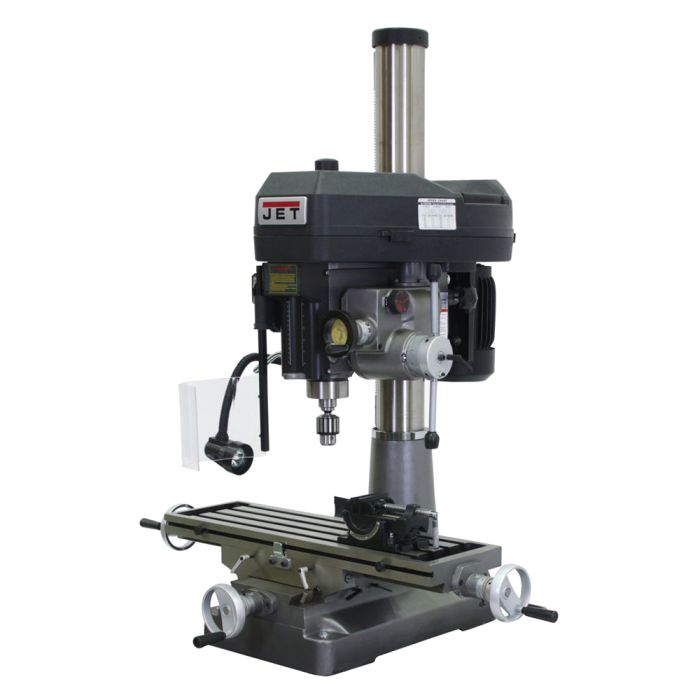

JET 350129 JMD-18PFNA Mill/Drill with Newall DP700 Dro & X-Axis Table Powerfeed

SKU
JT9-350129
$9,789.00
Ships direct from manufacturer?
Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC66275551443
Features
  • One-piece cast iron column for added support
  • 360 degree head swivel
  • Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
  • Worklamp
  • Base taper allows for easier clean up
  • 1/2 inch drill chuck, chuck arbor
  • Draw bar
  • Drill Press angle vise
  • Drill chuck guard
  • UL listed motor
  • Adjustable carbide facemill
  • Extra large worktable
  • Mill Drill Stand, p/n 320020, shown in some images, is optional
  • Positive quick-stop knob and easy to read internal depth gauge
PDFs
Horsepower2 HP
Motor Phase1Ph
Digital ReadoutNewall DP700
PowerfeedX-Axis
Drilling Capacity1 1/4"
Face Mill Capacity3"
End Mill Capacity3/4"
Swing15 7/8"
Maximum Distance Spindle to Table28"
Spindle TaperR-8
Spindle Travel5"
Spindle Travel Auto4 1/4"
Quill Down Feed Rates0.0047/ 0.007/ 0.001 (IPR)
Quill Diameter3"
Column Diameter4 1/2"
Number of Spindle Speed12
Range of Spindle Speed150 - 3,000 RPM
Table Longitudinal Travel20 1/2"
T-Slots Number4
T-Slots Size5/8"
T-Slot Centers1 13/16"
Base Dimensions15 3/4" x 23 3/4"
Table Length9 1/2"
Table Wight31 3/4"
Table Weight Capacity400 lbs
Voltage230 V/ 115 V
Length47"
With40"
Height51"
