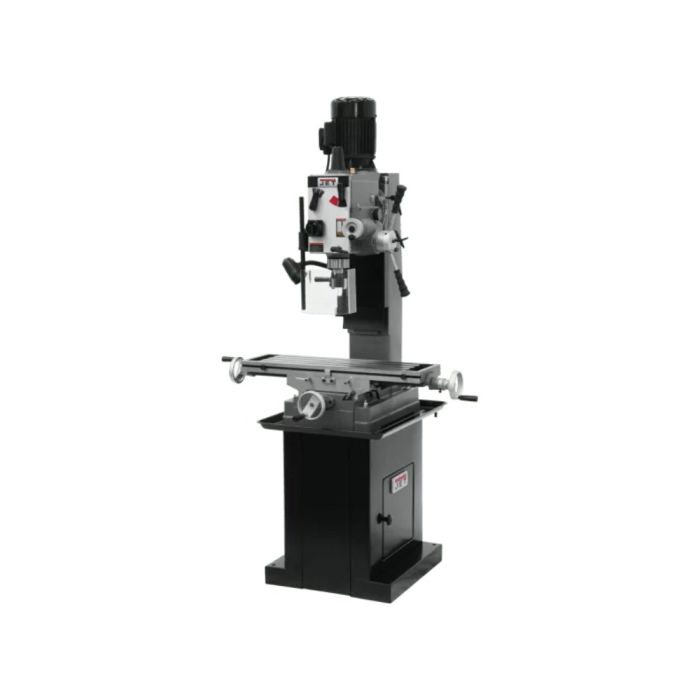

Jet JT9-351160 JMD-45GHPF, Geared Head Square Column Mill/Drill with Power Downfeed, DP500 2-Axis DRO

SKU

JT9-351160

$10,713.00

Ships direct from manufacturer

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

The heavy-duty JMD-45GHPF Square Column Geared Head Mill Drill with power downfeed capability is engineered to deliver the rigidity needed to perform a variety of precision drilling applications in high intensity environments. CSA/CUS Certified.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Jet
Condition	New
UPC	00731325709223
Features	Easy to read internal depth gauge Full power to the cutting tools through 6 speed geared head Heavy-duty design allows for a variety of precision drilling applications Mill Drill Stand, p/n 350045, shown in some images, is optional Milling table allows for movement R8 spindle allows use of all mill tooling Rapid spindle speed changes through quick-select gear shift levers Square column with dovetail ways
Horsepower	1.5 HP
Motor Phase	1 Ph
Warranty	2 Years

Type	Mill/Drill with Power Downfeed
Base Dimensions	26-11/16" x 15-15/16"
Face Mill Capacity	4"
Maximum Distance Spindle to Table	18-1/8"
Model Number	JMD-45GHPF
Number of Spindle Speeds	6
Overall Dimensions (L x W x H)	29" x 36" x 50"
Quill Diameter	3"
Range of Spindle Speeds (RPM)	130 - 2000 RPM
Spindle Taper (In. x TPI)	R8
Spindle Travel	5"
Swing	19-11/16"
Table Longitudinal Travel	20-1/2"
Table Size (L x W)	9-1/2" x 32-1/4"
Weight	820 lbs
Motor Voltage	115/230 V
