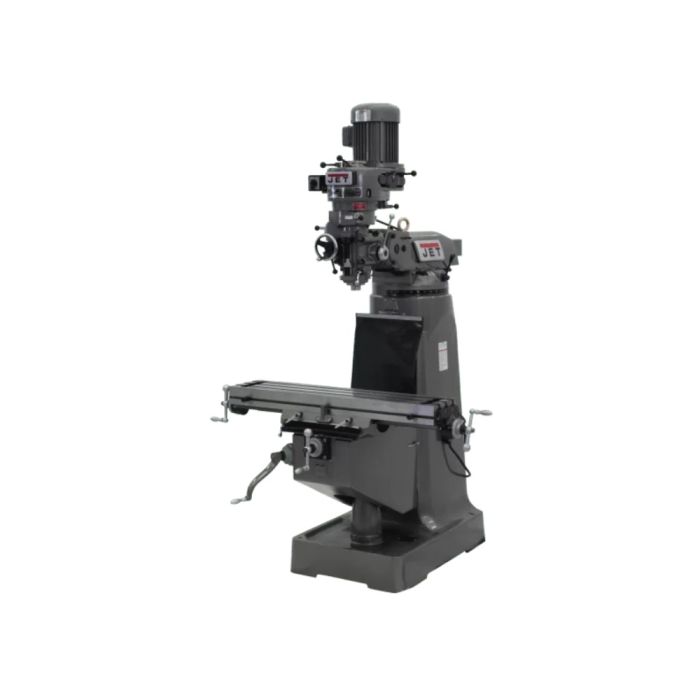

Jet JT9-692192 JTM-1, Mill with 3-Axis Newall DP500 DRO (Quill) & X & Y-Axis Powerfeeds

SKU
JT9-692192
$18,512.00
Ships direct from manufacturer?

The JTM-1 Mill With 3-Axis Newall DP500 DRO (Quill) With X & Y-Axis Powerfeeds has a three-stage power down feed with automatic stop, high precision Class 7 spindle bearings and the rugged stability of Certified Meehanite castings which ensures we get everything we need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features we've come to expect, all backed by the industry-leading JET Two Year Warranty.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00731325453775
Features
  • Heavy duty splined motor drive
  • Internal coolant tank built into base for use with coolant system (Coolant pump not included)
  • Large Diameter quill is chromed
  • One shot lubrication system
  • Precision bored and honed milling head
  • Precision hardened and ground ways
  • Satin chrome finished dials
  • Tolerance test sheet included
Horsepower2 HP
Motor Phase3 Ph
Warranty2 Years
TypeMill with 3-Axis Newall DP500 DRO
Collet Capacity1/8" - 7/8"
Distance Spindle to Column (Max.)19"
Maximum Distance Spindle to Table17-1/2"
Model NumberJTM-1
Number of Spindle Speeds16
Overall Dimensions (L x W x H)57" x 64" x 82"
PowerfeedX and Y-Axis
Quill Diameter3-3/8"
Quill Down Feed Rates (IPR)0.0015 - 0.003 - 0.006 IPR
Range of Spindle Speeds (RPM)80 - 5,440 RPM
Spindle Taper (In. x TPI)R-8
Spindle Travel5"
StyleStep Pulley R8
Table Cross Travel12-1/2"
Table Longitudinal Travel23-7/8"
Table Longitudinal Travel With Powerfeed20-2/7"
Table Size (L x W)9" x 42"
Travel of Knee14-1/2"
Travel of Ram13-3/8"
T-Slot Centers2-1/2"
Weight2200 lbs
Work Table Weight Capacity550 lbs
Motor Voltage230 V
