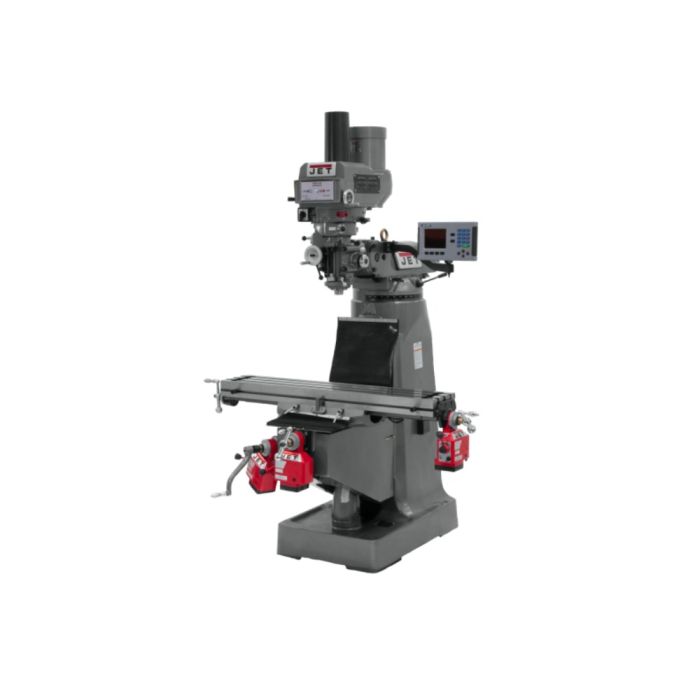

Jet JT9-690153-4, JTM-4VS Milling Machine l With 3-Axis Acu-Rite 203 DRO

SKU
JT9-690153-4
$26,069.00
Ships direct from manufacturer?

JTM-4VS Mill With 3-Axis ACU-RITE 203 DRO (Quill), X, Y and Z-Axis Powerfeeds With Power Drawbar.

Constructed using the Certified Meehanite casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00019907000709
Features
  • Adjustable gibs throughout
  • Heavy duty splined motor drive
  • Internal coolant tank built into casting base for use with coolant system (Coolant pump not included)
  • Large Diameter quill is chromed
  • One shot lubrication system
  • Precision hardened and ground ways and table
  • Spindle head is internally cooled
  • Tolerance test sheet included
Horsepower3 HP
Motor Phase3 Ph
Warranty2 Years
TypeMilling Machine
Collet Capacity1/8" - 7/8"
Distance Spindle to Column (Max.)19"
Max Distance Spindle to Table17-1/2"
Model NumberJTM-4VS
Voltage230/460V
Number of Axis3 (Quill)
Overall Dimensions (L x W x H)66" x 63" x 85"
Power Draw BarPneumatic
PowerfeedX, Y and Z-Axis
Prop 65Cancer and Reproductive Harm
Quill Diameter3-3/8"
Quill Down Feed Rates (IPR)0.0015 - 0.003 - 0.006
Range of Spindle Speeds (RPM)60 - 4,200 RPM
Spindle Taper (In. x TPI)R-8
Spindle Travel5
Style (Type)Variable Speed R8
T-Slot Centers2-1/2"
Table Cross Travel12"
Table Longitudinal Travel34"
Table Longitudinal Travel With Powerfeed28-3/4"
Table Size (L x W)9" x 49"
Travel of Knee14-1/2"
Travel of Ram13-3/8"
Work Table Weight Capacity660 lbs
Weight2420.0 lbs
