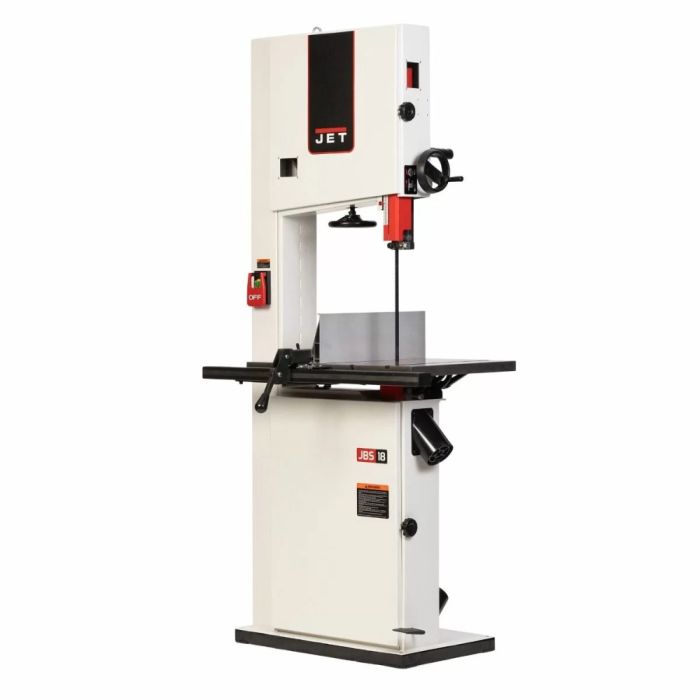

Jet JT1-548 JWBS-18SFX-3, 18" 3HP 1Ph 230V Bandsaw

SKU
JT1-548
$3,299.00
Ships direct from manufacturer?

The JET JWBS-18SFX-3 is a powerful 18" bandsaw engineered for superior performance in both professional and hobbyist woodworking settings. Featuring a robust 3HP motor operating on a 230V power supply, this bandsaw delivers exceptional re-saw capacity and greater throat depth, enabling users to tackle larger and more intricate cuts with ease. Key safety features include a foot brake for blade stoppage, while the ergonomic design ensures smooth adjustments and optimal blade support through a rigid, four-sided guide post with rack and pinion adjustment. The dual 4" dust collection ports effectively capture dust and chips, maintaining a clean workspace. Additionally, the table's tilting capability (5° left and 45° right) accommodates a variety of cuts, making it versatile for different projects. Built for durability and stability, the JET JWBS-18SFX-3 bandsaw is an essential tool for achieving precise and high-quality woodworking results.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
Features
  • Powerful 3HP Motor: Handles large, tough cuts with ease, perfect for heavy-duty woodworking projects
  • Foot Brake Safety: Blade stoppage for enhanced user safety and accident prevention
  • Ergonomic Adjustments: User-friendly knobs and handwheels ensure smooth and precise adjustments
  • Clear Blade Tracking: Transparent window for easy and accurate blade alignment
  • Dual 4" Dust Ports: Efficiently captures dust and chips at the source, maintaining a clean work environment
  • Quick Release Tensioning: Heavy-duty system with an easy-to-read scale for fast and efficient blade tension adjustments
  • Optimal Blade Support: Rigid, four-sided guide post with rack and pinion adjustment for superior blade stability
  • Stable Cast Iron Trunnion: Provides maximum support and stability during operation
  • Versatile Cutting Angles: Table tilts 5° left and 45° right to accommodate a wide variety of cuts
Video

Horsepower3 HP
Motor Phase1 Ph
Speed (RPM)6,400 RPM
Warranty5 Years
TypeBandsaw
Model NumberJWBS-18SFX-3
Blade Wheel Diameter18-1/2"
Maximum Saw Blade Width1-1/4"
Minimum Saw Blade Width1/8"
Cutting Capacity Height16"
Cutting Capacity Width18"
Dust Port Outside Diameter4"
Dust Collection Minimum CFM Required (CFM)600 CFM
Table Size (L x W)27-1/4" x 20"
Table TiltLeft 5 Deg, Right 45 Deg
Motor Voltage230 V
Prewired Voltage230 V
Recommended Circuit Size (Amps.)20 A
Motor Amps15 A
Table Height from Floor37"
Table T-Slot3/4"
Weight406 lbs
